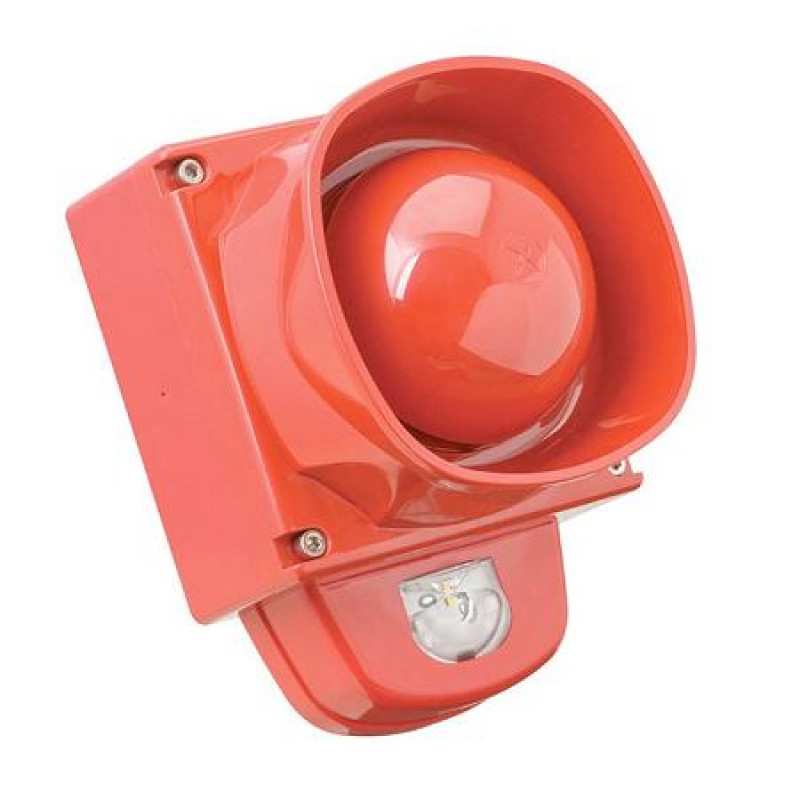

Ziton, ZPW767R, Wall Mount Weatherproof Sounder VAD - Red Body and Flash)

UTC, ZPW767R, Wall Mount Weatherproof Sounder VAD - Red Body and Flash)

The ZPW767R is a ZP7 series, ZP protocol addressable RED  sounder with a built in visual alarm device (VAD), the latter approved for wall mount applications. The VAD features a clear lens with red LED element. The ZPW767 incorporates a switch  setting allowing it to be assigned a unique address on a ZP fire panel loop.

With its durable design, high sound output and VAD designed for installa tion up to a height of 2.4m, the ZPW767 ensures reliability and is suitable for a variety of applications

Key Features:

• Compatible with ZP addressable fire panels
• Connection layout with easy wiring and connection on installation
• Powered directly from the ZP loop for small installations, or externally when many units are required
• Fully addressable
• LED technology for long service life and low current consumption, maximising the number of devices on a loop
• Unique optics for light management with a lens design that optimises light dispersal, minimising power wastage
• Up to 7.5m coverage diameter, reducing the number of devices required to cover an area
• Coverage switch feature - for smaller areas switch down from 7.5m to 5m, reducing power consumption and saving up to 50%
• Flash rate switch feature, reducing the power consumption by up to 50%
• Soft start up for reduced current peak at start up, reducing circuit loading
• Locking base to prevent easy removal of device
• 8 Selectable tones with 4 selectable output levels
• EN54-3 and EN54-23 approved and CPR certified

For more details, please refer with our attached datasheet.
