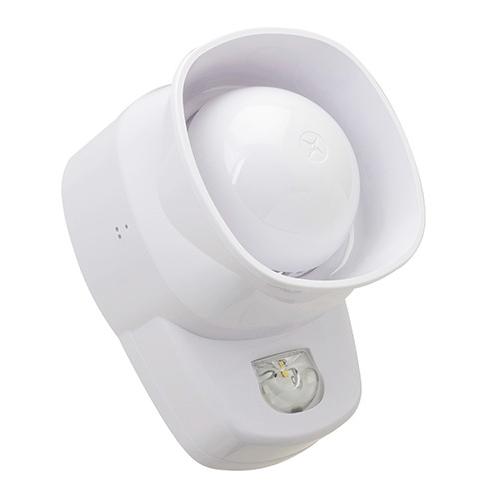

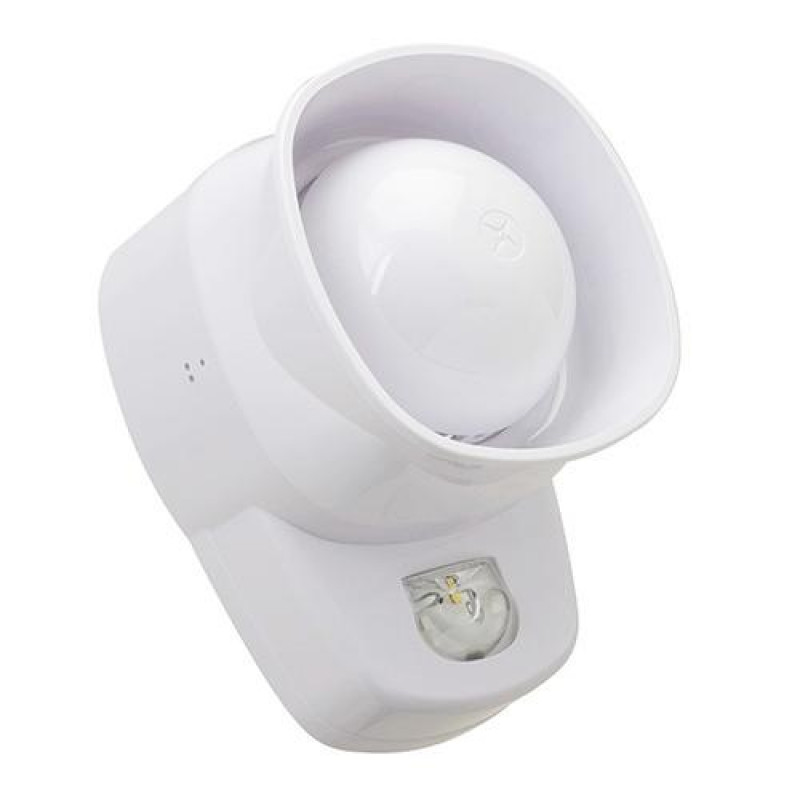

Ziton, ZPW766W, Wall Mount Weatherproof Sounder VAD - White Body, Red Flash

UTC, ZPW766W, Wall Mount Weatherproof Sounder VAD - White Body, Red Flash

 The ZPW766W is a ZP7 series, ZP protocol addressable WHITE sounder with a built in visual alarm device (VAD), the latter approved for wall mount applications. The VAD features a clear lens with red LED element. The ZPW766 incorporates a switch setting allowing it to be assigned a unique address on a ZP fire panel loop.

With its durable design, high sound output and VAD designed for installation up to a height of 2.4m, the ZPW766 ensures reliability and is suitable for a variety of indoor open areas where there is higher than normal background noise, whilst the unique lens design of the VAD distributes light evenly over the selected surface area.

Key Features:

• Compatible with ZP addressable fire panels
• Connection layout with easy wiring and connection on installation
• Powered directly from the ZP loop for small installations, or externally when many units are required
• Fully addressable
• LED technology for long service life and low current consumption, maximising the number of devices on a loop
• Unique optics for light management with a lens design that optimises light dispersal, minimising power wastage
• Up to 7.5m coverage diameter, reducing the number of devices required to cover an area
• Coverage switch feature - for smaller areas switch down from 7.5m to 5m, reducing power consumption and saving up to 50%
• Flash rate switch feature, reducing the power consumption by up to 50%
• Soft start up for reduced current peak at start up, reducing circuit loading
• Locking base to prevent easy removal of device
• 8 Selectable tones with 4 selectable output levels
• EN54-3 and EN54-23 approved and CPR certified

For more details, please refer with our attached datasheet.
