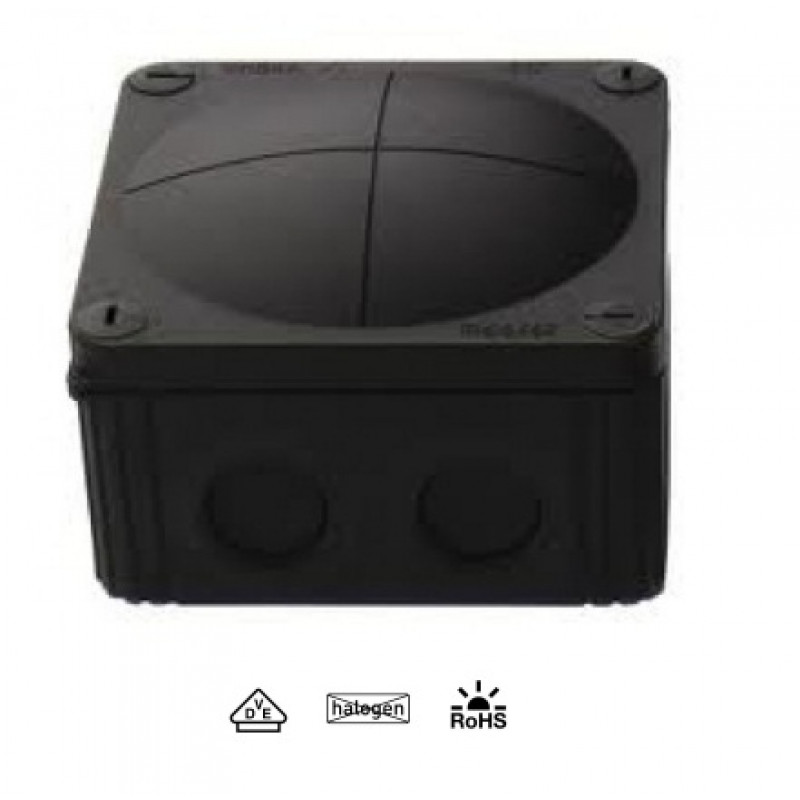

61999, Black COMBI 108/Empty Junction Box (76x76x51mm)
- Brand:Wiska
- Product Code:61999
- Availability:Please Call or Email Us to Check Availability
61999, Black COMBI 108/Empty Junction Box (76x76x51mm)
The COMBI series by WISKA offers outstanding properties and a comprehensive range of accessories for the widest range of applications. COMBI junction boxes are used in commercial, industrial and domestic applications, such as railway, shipping and offshore industries.
Features:
| Material | Polypropylene |
| Material sealing gasket | TPE |
| Temp. range min | -30 °C |
| Temp. range max | 100 °C |
| Temperatures during install. | -5 °C - 60 °C |
| Protection class | IP66 |
| Glow wire test | 750 °C |
| Voltage | 400 V |
| Terminals/poles | 2,5 mm² |
| Fixing | 2 internal openings |
| Ø cable diameter min | 3 mm |
| Ø cable diameter max | 14 mm |
| External dimensions LxWxH | 76 x 76 x 51mm |
| Using for cable gland |  |
| Product Color | RAL 9005 |
| WISKA-Order no. | 10061999 |
| Type | COMBI 108/empty/S |
| Packing unit | 10 |
| ETIM-Classification | EC002600 |
| Remarks: Fixing: By mounting clip or two internal openings outside of the sealing area Equipment: 10 elastic self-sealing puncture-membranes for cable entry on the side and 2 in the bottom |
|
For more details, please find the attached datasheet.
