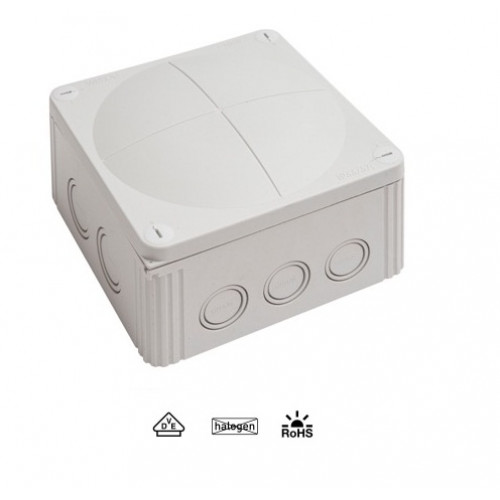

60702, Grey COMBI 1010 (Empty) IP67 Junction Box (140x140x82mm)
- Brand:Wiska
- Product Code:60702
- Availability:Please Call or Email Us to Check Availability
60702, Grey COMBI 1010 (Empty) IP67 Junction Box (140x140x82mm)
The COMBI series by WISKA offers outstanding properties and a comprehensive range of accessories for the widest range of applications. COMBI junction boxes are used in commercial, industrial and domestic applications, such as railway, shipping and offshore industries.
Features:
| Material | Polypropylene |
| Material sealing gasket | TPE |
| Temp. range min | -30 °C |
| Temp. range max | 100 °C |
| Temperatures during install. | -5 °C - 60 °C |
| Protection class | IP66/67 |
| Glow wire test | 750 °C |
| Voltage | 690 V |
| Terminals/poles | 10 mm² |
| Fixing | 4 internal openings |
| Ø cable diameter min | 6 mm |
| Ø cable diameter max | 21 mm |
| External dimensions LxWxH | 140 x 140 x 82mm |
| Using for cable gland |  |
| Product Color | RAL 7035 |
| WISKA-Order no. | 10060702 |
| Type | COMBI 1010/empty |
| Packing unit | 2 |
| ETIM-Classification | EC002600 |
| Remarks: IP66: using the QUIXX self sealing membrane screw IP67: using the knockout entry together with ESKV cable gland Mounting: 4 internal openings outside of the sealing area Equipment: 10 knockouts side 5x M25/M32; 2x M20; 3x M20/M32 4 knockouts in the bottom 2x M25/M32; 2x M20/M25 4 captive cover screws including QUIXX EMS self-sealing membrane screw 2x M25; 1x M32 |
|
For more details, please find the attached datasheet.
