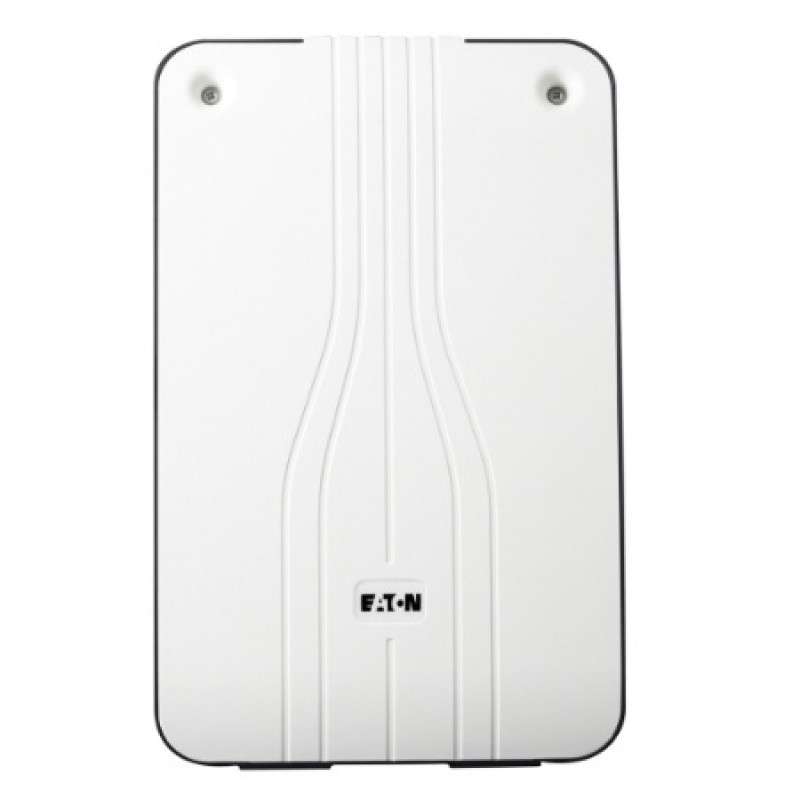

Eaton (i-on30R-EU) 30 Zone Radio Control Panel International
- Brand:Eaton
- Product Code:i-on30R-EU
- Availability:Please Call or Email Us to Check Availability
Eaton (i-on30R-EU) 30 Zone Radio Control Panel International
The i-on30R, a 30 zone radio panel offers straightforward secure configuration using the enhanced web browser and is compatible with Eaton’s full range of radio peripherals and plug on communicators.
Feature packed to deliver you real benefits.
Highly secure encrypted web browser: mobile and tablet friendly interface for easy on-site system configuration
Email notification: Provides detailed system event information and image verification, when alarm is activated
SIA over IP: IP communication to your ARC with no requirement for a PSTN line, removing call charges and line fees.
Easy updates
Panel software updatable: provides choice of easy firmware update methods using Ethernet, USB and SD card
At a Glance:
• 30 zones on-board expandable to 60
• Hybrid expansion using EXP-R10/R30/W10/PSU
• Ethernet/ web server/ virtual keypad
• Visual verification
• Perimeter zone functionality
• SMS control
• Plug on ARC/ Speech/ SMS for PSTN/ GSM
• Class leading Scantronic radio
• UDL/ ARD over IP or PSTN
• EN50131 Grade II: Independently approved
Product Specification:
| Compliance | EN50131-1:2006 + A1:2009 Grade 2 and environmental class II, EN50131-3:2009, EN50131-6:2008, BS8243:2010, PD6662:2010 + IA1501:2015 |
| Zones | 30 Radio on board, expandable to 60, all fully programmable |
| Partitions | 4 independent partitions each with a part set or full set and three part set |
| Users | 30 user codes, 4 digit PIN number, proximity, remote control or radio panic button |
| Event log | 1000 events; 750 mandatory events and 250 non-mandatory |
| Outputs | One 500mA open collector programmable outputs 10 radio outputs |
| Bus devices | Accepts up to 20 bus devices (keypads, expanders and power supplies) |
| Internal sounder | One independently controlled 16 Ω speaker 4 internal radio sounders |
| External sirens | Dedicatated Siren and Strobe open collector output 4 External Radio Sirens |
| Remote communications | SIA IP via built in Ethernet port Email and images via via built in Ethernet port Footprint for connection of a range of alarm communications modules as described below |
| Visual verification | Up to 4 IP cameras |
| Power supply | Conforms to EN50131-6:2008 Type A power supply, rated power output 1.0A. 650mA is available for auxiliary power |
| Configurations options | Downloader via USB, IP or plug-on comms module, web browser via built in Ethernet port |
| Battery | Accepts a 12v standby battery up to 7Ah rechargeable lead acid, gel type |
| Dimesions | End station: 384 x 245 x 94mm |
| Weight | End station: 2.2kg |
| Temperature range | Environmental class II. Tested -10°C to 55°C @ 93% RH |
For more details, please refer with our attached datasheet.
