Electronics Line, ELREPEATER, Wireless Range Expander/Repeater
- Brand:Electronics Line
- Product Code:ELREPEATER
- Availability:Please Call or Email Us to Check Availability
Electronics Line, ELREPEATER, Wirefree RANGE EXPANDER which requires INF-PROGKP for Programming

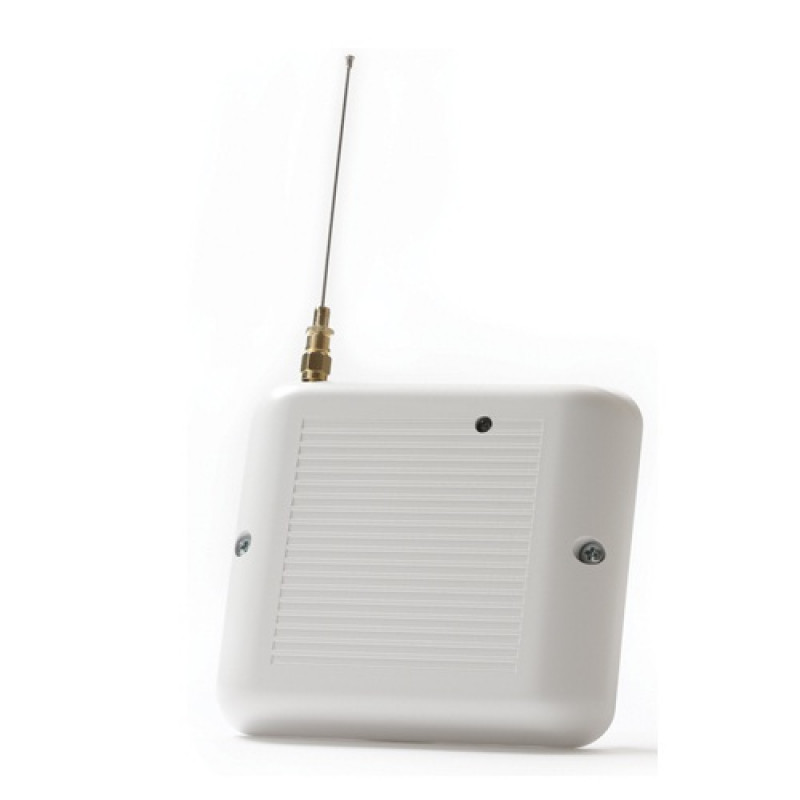

The EL Wireless Repeater extends the range between the control panel and wireless detectors, eliminating problematic reception areas. The Repeater can handle registration for up to 32 transmitters and is compatible with EL’s Two- Way Wireless product range.
Key Features:
- LCD programming keypad plug-in connection
- Battery and AC status LED indicators
- Runs on 9V AC or 12V DC transformer
- Backup power: 6V/850mAh battery (five 1.2 Ni-MH rechargeable cells, size AAAL)
- Built-in transmitter and receiver
- Tamper switch
Specification:
- NB Only for use with infinite panel software version 2.10 and above. Also requires installer keypad for setup order code INF-PROGRKP
- Frequency: 868.35MHz FM
- Antenna: External Whip
- Operating Voltage: 9VAC or 12VDC Backup Battery: 6V/850mAh (5 x 1.2V Ni-MH rechargeable cells, size AAAL)
- Current Consumption: 100mA max. (during transmission)
- Number of Transmitters: 32 max.
- Tamper Protection: Front Cover (N.C.)
- Operating Temperature: 0-60°C
- Dimensions: 123 x 109 x 27mm
For more details, please refer with our attached datasheet.
