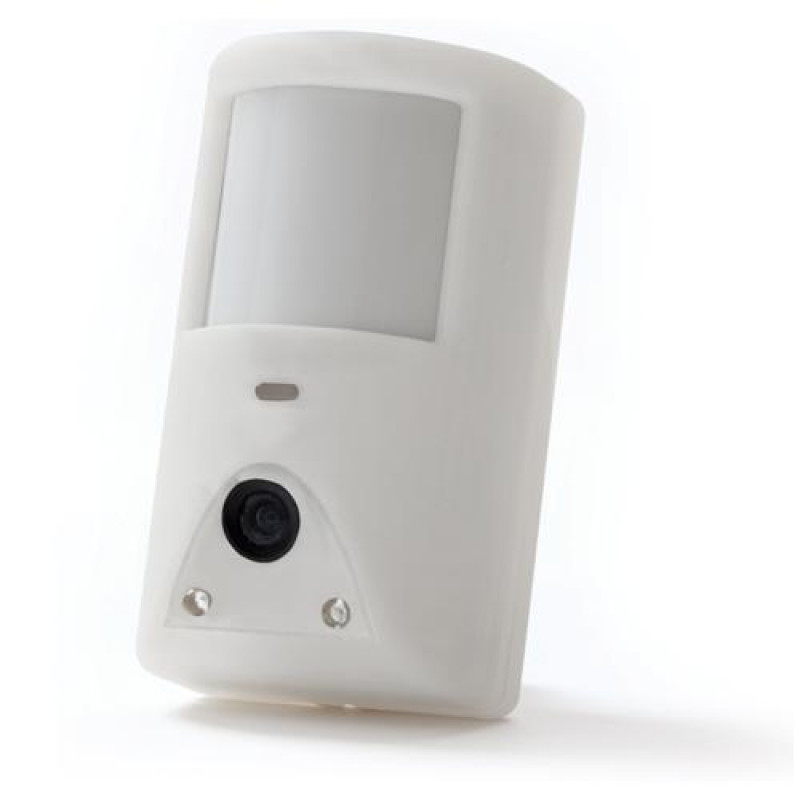

Electronics Line, EL2CAM, 2-Way iConnect PIR Camera
- Brand:Electronics Line
- Product Code:EL2CAM
- Availability:Please Call or Email Us to Check Availability
Electronics Line, EL2CAM, 2-Way iConnect PIR Camera
The 2-way wireless PIR detector incorporates three state-of-the-art technologies: PIR motion detection, CMOS imaging technology and two-way wireless communication.
When armed, the camera is automatically activated by an event and captures a series of images during and after the alarm. These are sent to the end user or security personnel via the smartphone app / web application. Any detector can trigger the PIR Camera to transmit images, for example a smoke detector in the house can trigger the camera to send an image thus allowing the verification of a fire.
Specifications:
- 14m x 14m range
- Installation height 2.5m
- PET Immunity option (45Kg animals)
- Digital Adaptive Temperature Compensation
- 1,2 or 3 pulse count
- High sensitivity 1/4 inch CMOS image sensor
- Various picture resolutions – VGA, QVGA, QQVGA, in color or B&W
- Night vision with 2 IR LEDs
- IR flash ensures camera picture capture remains discreet
- 10m coverage range in absolute darkness
- Automatic B&W in low light conditions
- Two powerful AA 3.6V/2Ah batteries for extended battery life
- No. of pictures per event configurable from 1 to 10
- Configurable time delay between picture capture (2fps to 15fps)
- Remote camera settings configuration via the ELAS
- Up to 8 Wireless PIR Cameras can be installed with each panel
- Any detector can be configured to activate picture capture
- “Sleep mode” during disarm for battery conservation
- Optional bracket support
- Frequency: 868Mhz or 433Mhz
