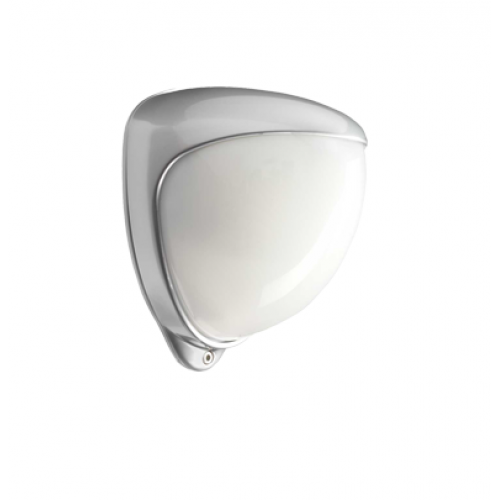

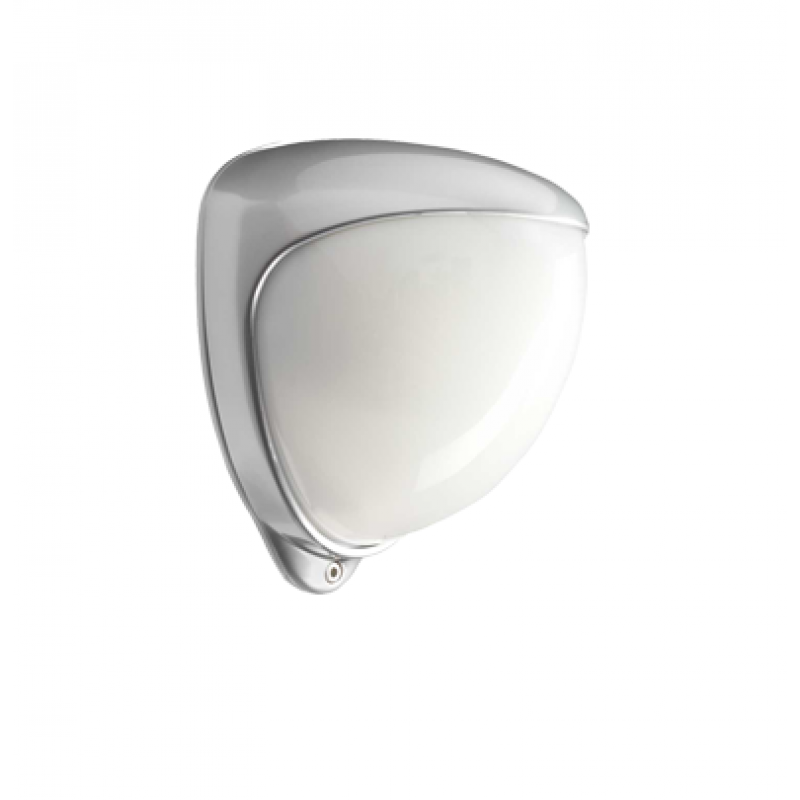

Eaton DET-REXT-PIR30, External radio PIR perimeter detector
- Brand:Eaton
- Product Code:DET-REXT-PIR30
- Availability:Please Call or Email Us to Check Availability
Eaton DET-REXT-PIR30, External radio PIR perimeter detector
An outdoor motion detector with Dual technology PIR element for perimeter monitoring, the detector is ideal to trigger alarm and video monitoring systems.
The DET-REXT-PIR30 is an outside radio PIR (Passive Infra-Red) detector for perimeter protection. The unit uses two independent detectors, both of which must trigger to cause the detector to signal an alarm. The detector delivers precise, reliable presence detection.
Combining Scantronic’s class leading radio with GJD’s reputation for flexibility, stability and accuracy to identify threat before they have a chance to cause loss or damage.
At a Glance:
- Low maintenance covert detection
- Creep mirror detects activity immediately below the unit
- Detection range up to 30m
- 500m radio range in free space on 868MHz
- IP 65 Protection rating
- Typical battery life 2 years (based on 200 activations per day)
- 2 x 3V CR123 batteries
- Compatible with full i-on & New Menvier ranges
Product Specifications:
- Detection range: Programmable to 10m, 20m or 30m.
- Coverage: 10 to 70° detection angle, 30 x 24m coverage max.
- Adjustment: 180° pan, 90° tilt.
- Fresnel lens: 28 zones for each detection element, which can be masked with the curtain sliders.
- Customised optics: Double silicon shielded quad element eliminates 50,000 lux of white light.
- LED: Detector programming.
- Radio transmitter range: 500m max in free space.
- Transmit frequency: 868.6625MHz narrowband.
- Batteries: 2x 3 V CR123 (lithium only).
- Typical battery life: 2 years.
- Quiescent current: 20μA.
- Pulse count: 1 or 2.
- Control: Digital microprocessor with non-volatile memory.
- Operating temp: −20 to +55°C.
- Housing: High-impact ABS plastic with HDPE cover, UV stabilized.
- Protection Rating: IP 65.
- Dimensions: 145 x 120 x 155mm.
- Weight: 363g net, 575g gross.
- Mounting height: Variable; 3m for full range.
Compatible products:
Advanced functionality to support the perimeter zone type available on:
i-on30R / i-on30R-EU Next Generation i-on 30 zone radio control panel
i-on40H / i-on40H-EU Next Generation i-on 40 zone control panel
Basic operability as a radio PIR available on:
- i-on16/ EUR 16 zone control panel
- i-on30EX/ EXEUR 30 zone control panel
- i-on40/ EUR 40 zone control panel
- i-on50EX/ EXEUR 50 zone control panel
- i-on160EX/ EXEUR 160 zone control panel
- Menvier30KPZ 30 zone control panel
- Menvier40KPZ 40 zone control panel
- Menvier100KPZ 100 zone control panel
- Menvier300KPZ 300 zone control panel
- Multibus/i-on1000EX/Menvier1000 1000 zone control panel
- 762REUR-00 2 channel radio receiver
- 768REUR-50 8 channel radio receiver
- EXP-R10/ R30 10 and 30 zone radio expanders
