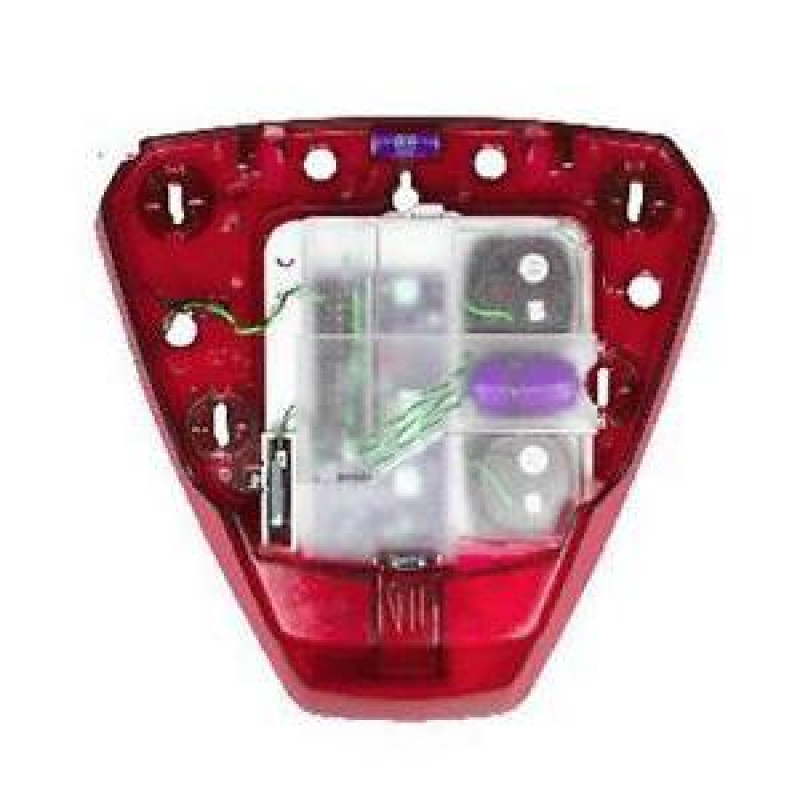

Pyronix (DELTABR-WE) DELTABELL Red Sounder Base W/ PCB, No Cover

Pyronix (DELTABR-WE) DELTABELL Red Sounder Base W/ PCB, No Cover

Attractive deterrent
The deltabell range of security sounders provides a visual deterrent whilst being aesthetically appealing and available in a choice of base and lid colours.

Clean and easy to fit
Being wireless the Deltabell-WE can be fitted to the exterior of your property with no need to run wires to the control panel making it quicker and easier to fit with less mess left in your home or business.

Superior performance and security
Enforcer two-way wireless technology is designed to ensure high security protection for users, and simple and easy installation and maintenance for installers.

With anti-jamming, high security protocol and tamper protection the Enforcer two way wireless Deltabell sounder provides peace of mind for users and installers alike.

Expert security with two-way wireless technology
Enforcer two-way wireless technology is designed to ensure high security protection for users, and simple and easy installation and maintenance for installers, utilising award winning features such as signal strength indicator (SSI) and jamming enforcer two-way wireless technology.

Signal strength indicator (SSI) & jamming detection
Some of the award-winning features on all wireless devices such as Signal Strength Indicators (SSI) and jamming detection combine to provide a system which is simple to install, while maintaining a reliable and secure wireless protocol.

Highly secure wireless encryption
128 bit encryption provides effective protection of signals being transmitted by the system and prevents code grabbing. This gives the wireless BUS a very high level of protection, ensuring peace of mind for users and installers alike.

300m transmission range
The high sensitivity receiver allows a wireless signal range of up to 300m in open space, eliminating the need for repeaters and reducing installation costs.

Customisable your deltabell covers
You can customise the look of your deltabell covers with your logo or design of your choice.

Key Features:

• Piezo sounder technology
• Various colour combinations available
• Water tight poly carbonate plastics
• Pyronix High Security Wireless Encryption Protocol
• 868MHz Transceiver FM technology
• Complies with EN50131-1

Technical Specifications:

Sounders technical characteristics

• Loudness : 94 dB(A)
• Opional comfort LED : 1
• Sound and light indication on alarm : Yes
• Engineer hold off : Yes
• Flashing LED : Yes
• Comfort LED : Yes
• Back-lit : No
• Tamper protection : Yes
• Strobe duration and frequency : 10ms, 1Hz
• Sounder maximum duration : 15 mins
• SAC (self actuating bell) / SAB (self activating bell) option : Yes
• Self levelling : Yes

Enforcer two-way wireless technology

• Signal Strength Indicators (SSI) : Yes
• Instant two way device control (ITDC) : Yes
• Pyronix high security two way wireless data encryption protocol (TDE) : Yes
• Pyronix intelligent jamming detection : Yes
• Programmable wireless supervision time : Yes
• 868MHz transceiver FM technology : Yes
• One push to learn : Yes
• Transmission range : 300m in open space

Communications and modems

• Supports PyronixCloud & HomeControl+ App : If used with HomeControl+ Panel (UK) or Enforcer 32-WE App (Export)

Environmental and operating features

• Certified operating temperature : -25°C to 60°C
• Nominal operating temperature : -30°C to 60°C
• Physical dimensions (H x W x D) : 290 x 285 x 50 mm

Electrical & battery

• Battery type : 2x 3V 5AHr Lithium battery packs (BATT-ES1)
• Battery life : 2 Years
• Battery low voltage protection : Yes
• Operating voltage : 9-16 v

Certifications and warranty

• Electrical conformity : CE
• EN Certificate : EN 50131-5-3: 2005 + A1: 2008 EN 50130-4: 1995 + A1: 1998 + A2: 2003 EN 61000-6-3: 2007
• Certification type : IMQ
• Certificate number : CA12.01330
• Environmental class : IV
• Warranty : 2 Years
• Security Grade : Grade 2
