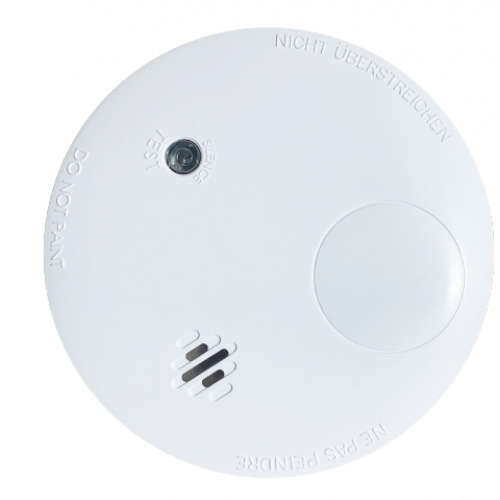

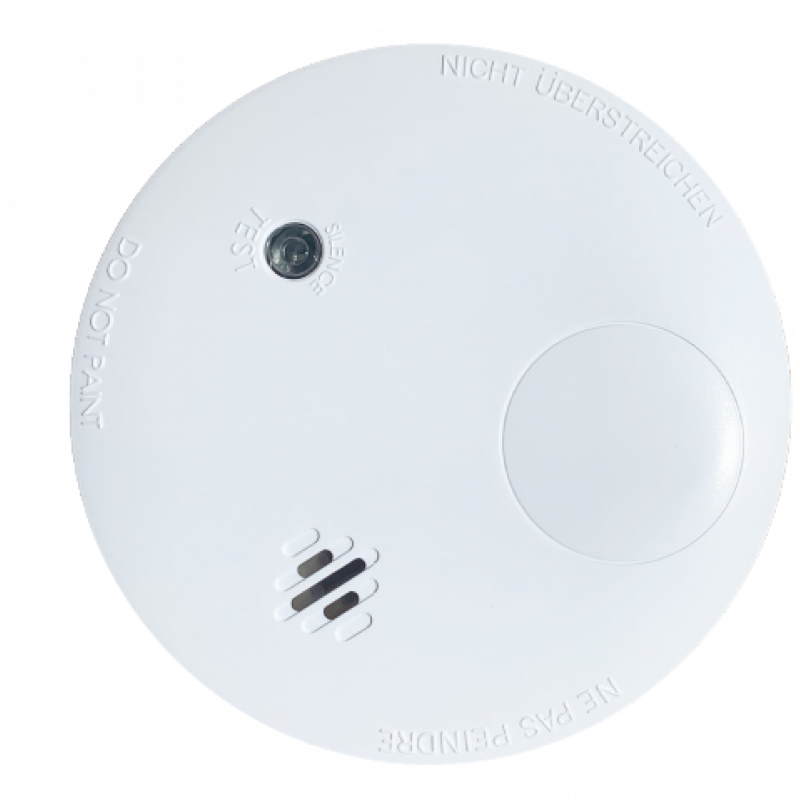

SMOKE-WE2, SMOKE WIRELESS Enforcer Smoke Sensor Gen2
Extending the capabilities beyond security, the SMOKE-WE (2nd Generation) raises the alarm to the presence of smoke to protect homes and families.
An easy upsell that increases the longevity and value of Pyronix systems, with voice push notification capabilities via the app to alert the user of danger.
The SMOKE-WE (2nd Generation) uses a photoelectric sensor alongside a light source and optical chamber for accurate detection. As smoke enters the optical chamber, it crosses the path of the pulsing LED light source; scattering smoke particles towards the light receptor/sensor to trigger the alarm.
The SMOKE-WE (2nd Generation) has a built-in 85dB local sounder and flashing LED lights; providing a clear and obvious alarm when smoke is detected.
When the battery is running low on the radio module of the SMOKE-WE (2nd Generation), the detector will send a signal to the control panel to report the issue. If the user has the smart device app connected to the system, they’ll also receive a push notification to draw their attention to the fault.
If the housing of the SMOKE-WE (2nd Generation) is dislodged, not fitted properly during the initial installation, or after a battery change, the rear tamper will trigger to alert that it is not fitted correctly.
The two-way wireless protocol has been developed by Pyronix to ensure that communications between all wireless system components within Pyronix systems are secure. The protocol uses the 128 bit Pyronix advanced encryption.
The Enforcer two-way wireless protocol allows easy learning of all its peripherals – with the push of a button you can add any of the detectors or sensors to the Enforcer 32-WE or Enforcer ProControl+ Panel.
SSI in all Enforcer wireless devices allow them to be optimally positioned during installation, without the need to refer back to the panel.
Fully wireless means there is no need to run wiring by lifting floorboards or moving furniture; saving time and money.
Specifications:
Smoke detector |
Yes |
Tamper protection |
Yes |
Button sensor test |
Yes |
LED sensor test |
Yes |
Sound level |
85dB/3m |
Signal Strength Indicators (SSI) |
Yes |
Instant two way device control (ITDC) |
Yes |
Pyronix high security two way wireless data encryption protocol (TDE) |
Yes |
Pyronix intelligent jamming detection |
Yes |
Programmable wireless supervision time |
Yes |
868MHz transceiver FM technology |
Yes |
One push to learn |
Yes |
Tranmission method |
Fully encrypted rolling code |
Certified operating temperature |
-10°C to +50°C |
Humidity |
5 - 90% |
Physical dimensions (ø x D) |
120 x 52.45mm |
Weight (including battery) |
183g |
RF power supply |
1 x 3V, CR123A (replaceable) |
RF battery life |
2 years (replaceable) |
Sensor power supply |
2 x 1.5V, AA (non-replaceable) |
Sensor battery life |
10 years (non-replaceable) |
Sensor low voltage alert |
2.6 - 2.7VDC |
RF low voltage alert |
2.5V +/-5% @ 25C |
Environmental Class |
II |
Electrical conformity |
CE |
Standards |
EN 14604 |
Warranty |
2 years |
(This smoke detector for use in and installed in and around buildings (private residential premises only) suitable for BS 5839 part 6 grade F1 (suitable for installation in existing single-family dwellings of no more than two storeys with a tamper proof battery)) |
For more details on this product range, including part numbers, please refer to the datasheet or contact us on sales@hunters-wholesalers.co.uk for more specific product information and pricing installation and training.
