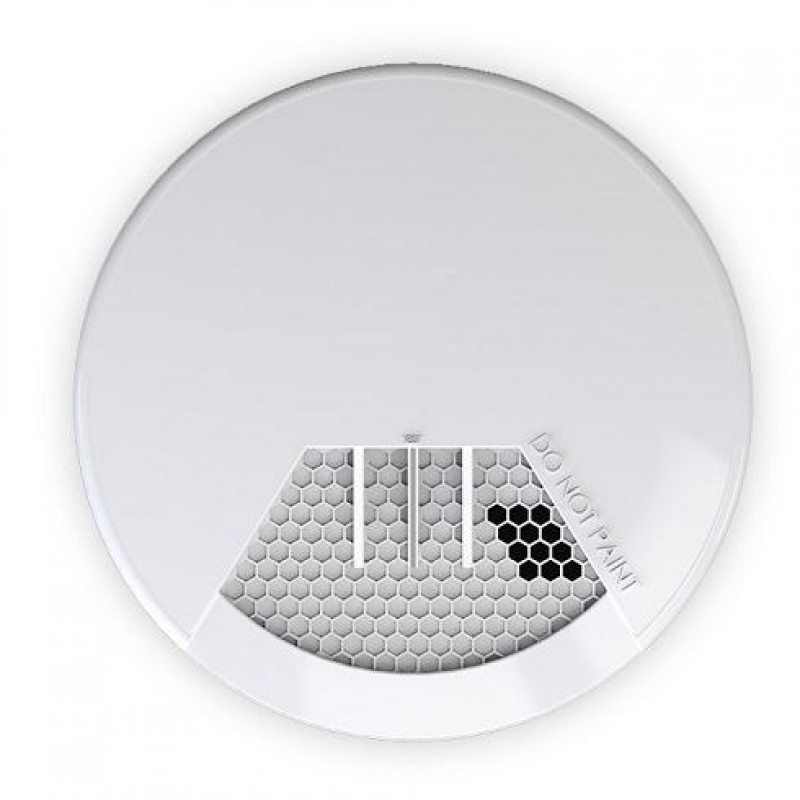

Pyronix, SMOKE-WE, Two-Way Wireless Smoke Sensor

Pyronix, SMOKE-WE, Two-Way Wireless Smoke Sensor

A smoke sensor is an integral part of everyone’s, home protecting you against the threat of fire. With the SMOKE-WE you can sleep safely knowing that your home is protected.

Fully supervised for low battery
When the battery is running low the SMOKE-WE will begin to chirp once in 32 seconds. It also sends a signal to your control panel reporting the status. If you are using the HomeControl+ Security System you will receive a warning on your app and you can even set up notifications to come through on your smartphone or tablet.

Manual testing
There is a manual test button which will verify battery status and alarm operation making sure that the device is working properly.

Loud 85dB sounder and LED signaling
Built-in 85dB local sounder and flashing red LED light will indicate prescence of smoke

Tamper Protection
If the front of the device has not been put back on after a battery change the rear tamper protection will trigger warning you that the device is not fitted correctly.

The wireless technology used on the Enforcer system holds a significant advantage over one way and some two way wireless products currently available on the market.

One-Push-To-Learn-Button
The Enforcer Two-Way Wireless proticol allows easy learning of all its peripherals, with the push of a button you can add any of the detectors or sensor to the Enforcer 32-WE or HomeControl+ Panel.

868MHz Transceiver FM technology

Signal Strength Indicator on the Device
One of the key advantages of implementing of the SSI technology is to allow the installer to view the wireless transmission signal strength on both the control panel and wireless devices in real time.

Pyronix High Security Wireless Protocol Encryption
The Two-Way wireless protocol has been developed by Pyronix to ensure that the communication between all wireless system components is protected on a very high security level. The protocol uses the 128 bit Pyronix advanced encryption.

Key Features:

• 85dB alert
• Photoelectric Smoke Sensor
• Removable Smoke Chamber
• Test Button
• One Push To Learn Button
• Signal Strength Indicator on the Device
• Pyronix High Security Wireless Protocol Encryption
• 868MHz Transceiver FM technology

Technical Specifications:

Security and safety sensors technical characteristics

• Smoke detector : Yes
• Tamper protection : Front and rear
• Button sensor test : Yes
• LED sensor test : RSSI, battery status
• Sound level : 85 dB/3m

Enforcer two-way wireless technology

• Signal Strength Indicators (SSI) : Yes
• Instant two way device control (ITDC) : Yes
• Pyronix high security two way wireless data encryption protocol (TDE) : Yes
• Pyronix intelligent jamming detection : Yes
• Programmable wireless supervision time : Yes
• 868MHz transceiver FM technology : Yes
• One push to learn : Yes
• Tranmission method : Fully encrypted rolling code
• Transmission range : 1.6 km in open space

Mounting

• Ceiling mounted : Yes

Environmental and operating features

• Certified operating temperature : 0°C to +49°C
• Nominal operating temperature : -10°C to +50°C
• Physical dimensions (H x W x D) : 120 x 120 x 5.3mm

Electrical & battery

• Battery type : 1 x CR123A 3V lithium battery
• Battery life : 1 year
• Low battery warning : Chirp once in 32 seconds with yellow flashing LED

Certifications and warranty

• Electrical conformity : CE
• EN Certificate : EN14604
• Environmental class : II
• Warranty : 2 years
