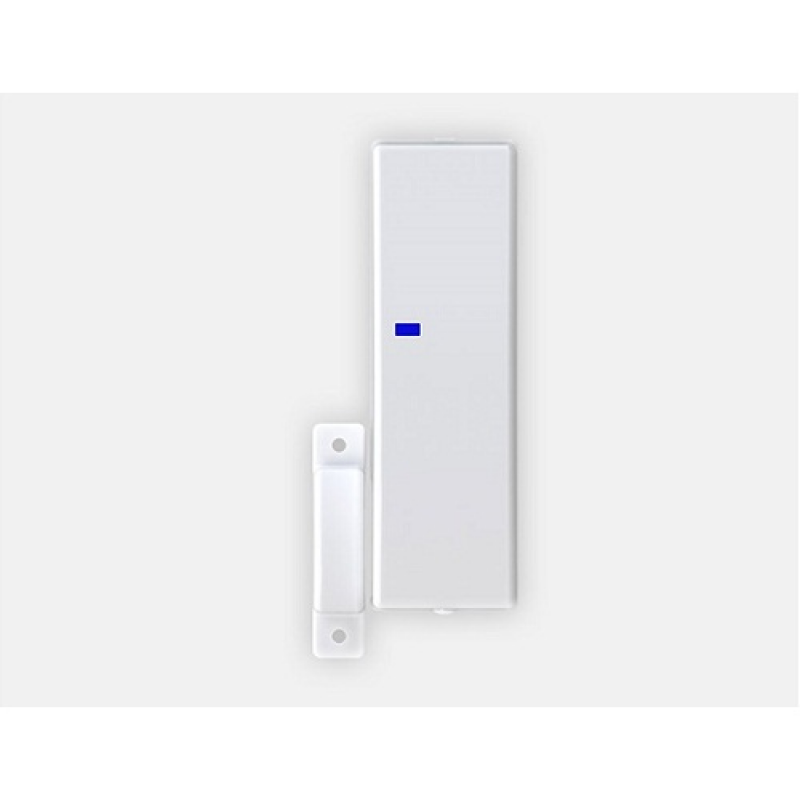

Pyronix (MC2-WE) Two-way Wireless Magnetic Contact and Universal Transmitter

Pyronix (MC2-WE) Two-way Wireless Magnetic Contact and Universal Transmitter

The MC2-WE two-ay wireless magnetic contact and universal transmitter features two reed switches, one input and a tamper input offering you flexibility in installation.

Running on Enforcer two-way wireless technology the MC2-WE transmits using the highly secure 128bit encryption, and with it being wireless it means there will be less mess whilst installing.

One-Push-To-Learn

Expert security with two-ay wireless technology
Enforcer two-way wireless technology is designed to ensure high security protection for users as well as simple and easy installation and maintenance for installers, utilising award winning features such as signal strength indicator (SSI) and jamming enforcer two-way wireless technology.

Signal Strength Indicator (SSI) & jamming detecton
Some of the award-winning features on all wireless devices such as Signal Strength Indicators (SSI) and jamming detection, combine to provide a system which is simple to install, while maintaining a reliable and secure wireless protocol.

Highly secure wireless encryption
128 bit encryption provides effective protection of signals being transmitted by the system and prevents code grabbing. This gives the wireless BUS a very high level of protection, ensuring peace of mind for users and installers alike.

300m transmission range
The high sensitivity receiver allows a wireless signal range of up to 300m in open space, eliminating the need for repeaters and reducing installation costs.

Key Features:

• 2 Reed Switch Detection Points (Side and End)
• External Tamper input
• Powerful Magnet
• Signal Strength Indicator in Device
• One Push To Learn Button
• Pyronix High Security Wireless Protocol Encryption
• 868MHz Transceiver FM technology
• Also Available in brown

Technical Specifications:

Security and safety sensors technical characteristics

• Magnetic contact : Yes
• 1 channel transmitter : Yes
• Tamper protection : Front and rear
• LED sensor test : RSSI, Battery Status and Alarm
• Terminal for N/C input and reed switch : Yes
• Magnet included : Yes
• Tamper input : Yes
• 2 detection points : Yes

Enforcer two-way wireless technology

• Signal Strength Indicators (SSI) : Yes
• Instant two way device control (ITDC) : Yes
• Pyronix high security two way wireless data encryption protocol (TDE) : Yes
• Pyronix intelligent jamming detection : Yes
• Programmable wireless supervision time : Yes
• 868MHz transceiver FM technology : Yes
• One push to learn : Yes
• Tranmission method : Fully encrypted rolling code
• Transmission range : 1.6km in open space

Environmental and operating features

• Storage temperature : -20°C to 50°C
• Certified operating temperature : -10°C to 40°C
• Nominal operating temperature : -10°C to 50°C
• Physical dimensions (H x W x D) : 115 x 35 x 30mm
• Magnet : 56 x 12.7mm

Electrical & battery

• Battery type : 3.0V CR2
• Battery life : 2 years
• Low battery threshold : 2.5V +/- 5% at 25°C

Certifications and warranty

• Electrical conformity : CE
• EN Certificate : EN50131-2-6:2008, EN50131-5-3:2005+A1:2008
• Certification type : IMQ
• Certificate number : CA12.01326
• Environmental class : II
• Warranty : 2 years
• Security Grade : Grade 2
