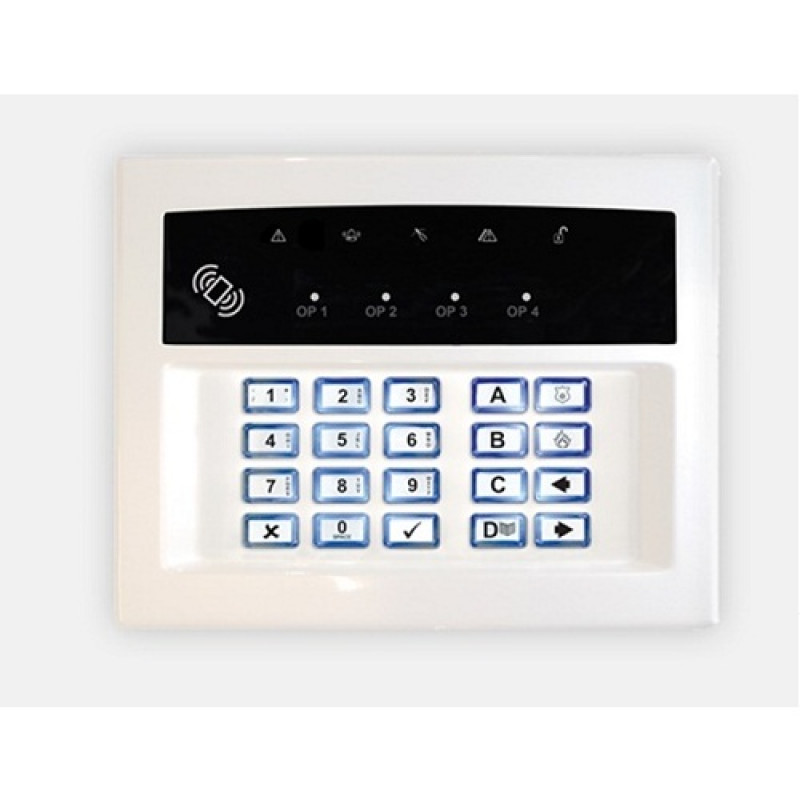

Pyronix (LEDRKP/WHITE-WE) Two-Way Wireless Arming Station

Pyronix (LEDRKP/WHITE-WE) Two-Way Wireless Arming Station

Using the Enforcer two-way wireless technology, the new EURO remote keypad combines the same high performance and security as the EURO wired keypads with the same ease of installation as the Enforcer wireless range.

The Enforcer wireless keypad comes complete with system status indicators, allowing you to see the status of your system without having to go to the panel. The LEDRKP/WHITE-WE has an integrated proximity tag reader.

LEDRKP/WHITE-WE is only compatible with Enforcer32-WE V9.5 and Enforcer HomeControl+ V2.1 and above. Enforcer 2 way wireless technology with high security encryption

The two-way wireless protocol has been developed by Pyronix to ensure that the communication between all wireless system components is protected on a very high security level. The protocol uses the 128 bit Pyronix advanced encryption.

Entry and exit tones
Keypad controlled outputs

Wired automation outputs can be triggered on the panel for example opening electrical gates, lighting, garage doors.

Instant two way device control (ITDC)
The ITDC technology enables instant wake up and instant sleep of each device on the system, allowing continuous communication between the control panel and wireless devices while preserving battery power. This technology not only provides installers with total control of each device, but also gives users peace of mind that they have a reliable and secure wireless system.

- Ensuring that all wireless detection devices know when the system is armed and disarmed.
- Ensuring that they are awake as soon as the system is armed.

Signal strength indicator
One of the key advantages of implementing of the SSI technology is to allow the installer to view the wireless transmission signal strength on both the control panel and wireless devices in real time.

3V lithium battery included

Key Features:

• New stylish plastics
• Wireless setting and unsetting of the control panel
• Connect up to four Wireless Arming Stations
• Optional Flush backbox
• Backlight enable and disable
• Tag enable and disable
• Local LED status indication
• Generates chime and alarm tones

Technical Specifications:

Setting devices technical characteristics

• Intergrated prox reader : Yes
• Activate output automation : Yes
• Entry and exit tones : Yes
• Backlit Keys : Yes
• LED keypad with icon display : Yes

Enforcer two-way wireless technology

• Signal Strength Indicators (SSI) : Yes
• Instant two way device control (ITDC) : Yes
• Pyronix high security two way wireless data encryption protocol (TDE) : Yes
• Pyronix intelligent jamming detection : Yes
• Programmable wireless supervision time : Yes
• 868MHz transceiver FM technology : Yes
• One push to learn : Yes
• Tranmission method : Fully encrypted rolling code
• Transmission range : 1.6 km in open space

Environmental and operating features

• Physical dimensions (H x W x D) : 100 x 145 x 30mm

Electrical & battery

• Battery type : 1 x BATT-ES1
• Battery life : 2 years

Certifications and warranty

• Electrical conformity : CE
• EN Certificate : EN50131
• Certification type : Self-certified
• Environmental class : II
• Warranty : 2 yeas
• Security Grade : Grade 2
