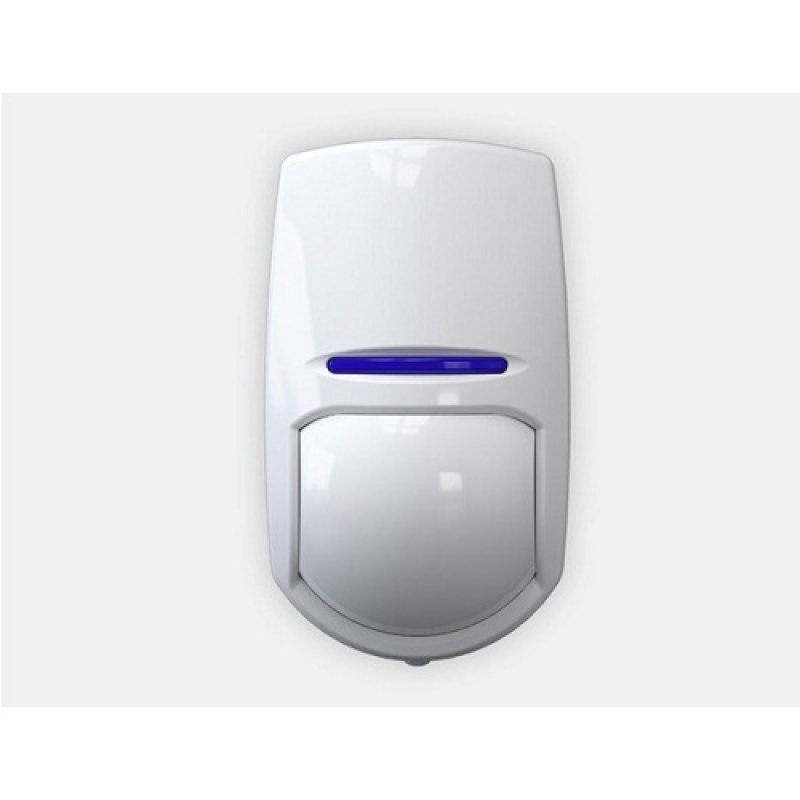

Pyronix, KX25LR-WE, Two-Way Wireless 25m Long Range Detector

Pyronix, KX25LR-WE, Two-Way Wireless 25m Long Range Detector

Two Way Wireless Technology
Each wireless device on the Enforcer system, including movement detectors is a transmitter and a receiver. The wireless technology used on the Enforcer system holds a significant advantage over one way and some two way wireless products currently available on the market

Instant two way Device Control (ITDC)
The ITDC technology enables instant wake up and instant sleep of each device on the system, allowing continuous communication between the control panel and wireless devices while preserving battery power. This technology not only provides installers with total control of each device, but also gives users peace of mind that they have a reliable and secure wireless system.

- Ensuring that all wireless detection devices know when the system is armed and disarmed.
- Ensuring that they are awake as soon as the system is armed.

Signal Strength Indicator (SSI)
One of the key advantages of implementing of the SSI technology is to allow the installer to view the wireless transmission signal strength on both the control panel and wireless devices in real time.

Sealed optics
Protects from possible infestation from insects, shields air movement in front of the pyro-electric sensor and protects against adverse reflections from inside the detector housing.

ABS plastics 3mm
polished finish, reduces electrostatic interference on the PIR sensor.

Blue wave technology
This technology further enhances the detector’s immunity to infra-red noise in the environment. BWT comprises of 2 key components: 1). The new 3D optics system enables perfect focussing of the infra-red signal onto the pyro-electric sensor. This allows BWT to clearly identify the positive and negative signal edges. 2). Powerful software embedded into a microprocessor is used to process the received information from the pyro-electric sensor. The result of this combination is lower infra-red signal noise amplification and therefore better immunity.

Key Features:

• BlueWave technology
• Digital temperature compensation technology
• Sealed optics
• Electrostatic ABS plastic shell , 3mm
• Signal Strength Indicator
• 868MHz FM transceiver technology
• Two-way wireless technology
• Complies with EN50131-1

Technical Specifications:

Detectors technical characteristics

• Two-way wireless technology : Yes
• Blue Wave technology : Yes
• Automatic sensitivity : Yes
• Digital temperature compensation : Yes
• Tamper protection : Front and rear

Enforcer two-way wireless technology

• Signal Strength Indicators (SSI) : Yes
• Instant two way device control (ITDC) : Yes
• Pyronix high security two way wireless data encryption protocol (TDE) : Yes
• Pyronix intelligent jamming detection : Yes
• Programmable wireless supervision time : Yes
• 868MHz transceiver FM technology : Yes
• One push to learn : Yes
• Tranmission method ; Fully encrypted rolling
• Transmission range ; 1.6 km in open space

Optical, lens and detection characteristics

• Maximum range : 25m
• Long range coverage : Yes
• Detection speed : 0.3 - 3.0 m/s
• Coverage angle : 20 degree
• Detection zones : 24
• Detection planes : 6

Mounting

• Wall mounted : Bracket included
• Ceiling mounted : Bracket included
• Optimum coverage height : 1.8 - 2.4m
• Certified mounting height : 2.4m

Environmental and operating features

• Storage temperature : -20°C to 50°C
• Certified operating temperature : -10°C to 40°C
• Nominal operating temperature : -10°C to 50°C
• Physical dimensions (H x W x D) : 117 x 69 x 50mm

Electrical & battery

• Battery type : 1 x CR123A
• Battery life : up to 2 years
• Battery voltage : 3.0V
• Low battery threshold : 2.5V +/- 5% at 25°C

Certifications and warranty

• Electrical conformity : CE
• EN Certificate : EN50131-2-2:2008, EN50131-5-3:2005+A1:2008, PD6662:2010
• Certification type : IMQ
• Certificate number : CA12.0428
• Environmental class : II
• Warranty : 2 years
• Security Grade : Grade 2
