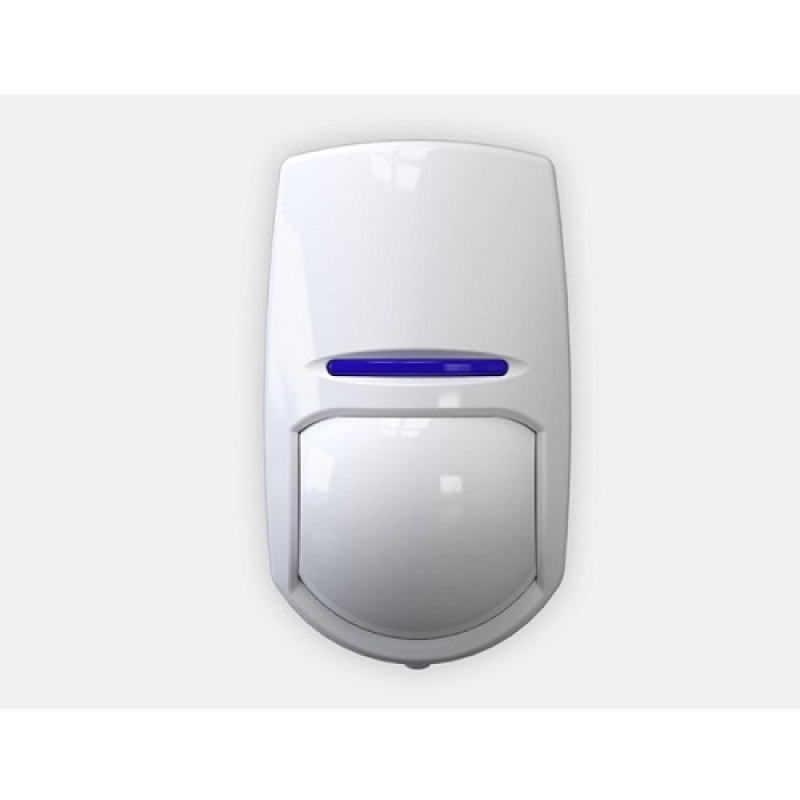

Pyronix (KX12DT3-WE) 12m Wireless Dual Technology Detector

Pyronix (KX12DT3-WE) 12m Wireless Dual Technology Detector

Simple to install with the One-Push-To-Learn feature, the KX12DT-WE is quick and easy for installers and end user alike. As it is wireless, there is no need to run wires into walls or pull up carpets meaning there's less mess and inconvenience.

As both sensors need to be triggered to sound the alarm, dual technology detectors will maximise performance as well as reduce the risk of false alarms.

12m Two-Way wireless dual technology
The KX12DT-WE combines a PIR and Microwave detector to give you the added security you need when installing in hostile environments or in commercial settings.

Instant two way Device Control (ITDC)
The ITDC technology enables instant wake up and instant sleep of each device on the system, allowing continuous communication between the control panel and wireless devices while preserving battery power. This technology not only provides installers with total control of each device, but also gives the users peace of mind knowing that they have a reliable and secure wireless system.

- Ensuring that all wireless detection devices know when the system is armed and disarmed.
- Ensuring that they are awake as soon as the system is armed.

Signal Strength Indicator (SSI)
One of the key advantages of implementing of the SSI technology is to allow the installer the ability to view the wireless transmission signal strength on both the control panel and wireless devices in real time.

12m Wireless Volumetric detector
12m Volumetric detection coverage. Ideal for protection of rooms, offices etc.

Auto sensitivity feature
Depending on the environment condition, the detector will automatically adjust the sensitivity

ABS plastics
3mm polished finish, reduces electrostatic interference on the PIR sensor.

Pyronix High Security Wireless Protocol Encryption
The two way wireless protocol has been developed by Pyronix to ensure that the communication between all wireless system components is protected on a very high security level. The protocol uses the 128 BITS Pyronix advanced encryption key.

Key Features:

• Dual technology detector
• Fully Two Way Wireless
• Instant two way device control (ITDC)
• Auto sensitivity feature
• Digital temperature compensation
• ABS plastics
• 868MHz Transceiver FM technology
• Complies with EN50131-1

Technical Specifications:

Detectors technical characteristics

• Two-way wireless technology : Yes
• Blue Wave technology : Yes
• Automatic sensitivity : Yes
• Digital temperature compensation : Yes
• Tamper protection : Front and Rear
• Separate LED indication : Microwave, PIR, Alarm, Signal, Battery, Alarm, Tamper
• 3 microwave frequencies to avoid interference : Yes

Enforcer two-way wireless technology

• Signal Strength Indicators (SSI) : Yes
• Instant two way device control (ITDC) : Yes
• Pyronix high security two way wireless data encryption protocol (TDE) : Yes
• Pyronix intelligent jamming detection : Yes
• 868MHz transceiver FM technology : Yes
• One push to learn : Yes
• Tranmission method : Fully encrypted rolling
• Transmission range : 300m in open space

Optical, lens and detection characteristics

• Maximum range : 12m
• Volumetric coverage : Yes
• Dual technology : Yes
• Detection speed : 0.3- 3.0m/s
• Coverage angle : 85 degree
• Detection zones : 60
• Detection planes : 7

Mounting

• Optimum coverage height : 1.8 - 2.4m

Environmental and operating features

• Storage temperature : -20°C to 50°C.
• Certified operating temperature : -10°C to 40°C
• Nominal operating temperature : -10°C to 50°C
• Physical dimensions (H x W x D) : 117 x 69 x 59mm

Electrical & battery

• Battery type : 2 x CR123A
• Battery life : 2 years
• Battery voltage : 3.0V

Certifications and warranty

• Electrical conformity : CE
• EN Certificate : EN50131-2-4:2008, EN50131-5-3:2005+A1:2008, PD6662:2010
• Certification type : IMQ
• Certificate number : CA12.01483
• Environmental class : II
• Warranty : 2 years
• Security Grade : Grade 2
