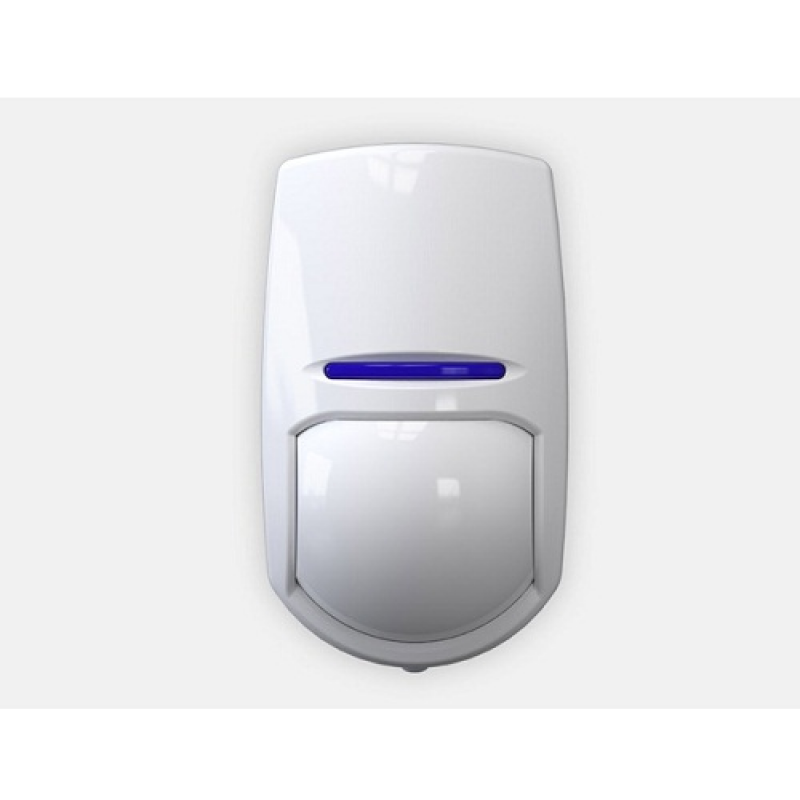

Pyronix (KX12DQ-WE) Two Way Wireless 12m Digital PIR Dual Detector

Pyronix (KX12DQ-WE) Two Way Wireless 12m Digital PIR Dual Detector

The KX12DQ-WE combines the excellent performance of the KX digital quad technology with the benefits of a wireless product. With increased accuracy and sensitivity the KX DQ sensor is the ideal choice for many homes and businesses alike.

Aspherical Lens
In the KX Series, the distance between the pyro-electric sensor and the lens is identical for each detection zone. This eliminates distortion and provides excellent focused zones.

In traditional detectors the lens is made in a flat form and bent into a cylinder. Therefore the distance between the pyro-electric sensor and the lens varies for each detection zone. This causes distortion and unfocused zones.

Compatibility
All Enforcer 868MHz High Security Peripherals are compatible with the Enforcer control panel, and Euro panels fitted with the EURO-ZEM32-WE wireless zone expander.

Signal Strength Indicator (SSI)
One of the key advantages of implementing of the SSI technology is to allow the installer to view the wireless transmission signal strength on both the control panel and wireless devices in real time.

12m Wireless Volumetric detector
12m Volumetric detection coverage. Ideal for protection of rooms, offices etc.

Digital Temperature Compensation
When the product is used in a hot environment this technology digitally adjusts the detector’s sensitivity allowing it to maintain its range even when the background room temperature is almost equal to the external body temperature of 32ºC (internal body temperature = 37ºC)

Blue wave technology
This technology further enhances the detector’s immunity to infra-red noise in the environment. BWT comprises of 2 key components:

1). The new 3D optics system enables perfect focussing of the infra-red signal onto the pyro-electric sensor. This allows BWT to clearly identify the positive and negative signal edges.

2). Powerful software embedded into a microprocessor is used to process the received information from the pyro-electric sensor. The result of this combination is lower infra-red signal noise amplification and therefore better immunity.

Sealed optics
Protects from possible infestation from insects, shields air movement in front of the pyro-electric sensor and protects against adverse reflections from inside the detector housing.

ABS plastics
3mm polished finish, reduces electrostatic interference on the PIR sensor.

Key Features:

• 12m Volumetric detection
• Dual element pyro-electric sensor
• Blue wave technology
• Digital temperature compensation
• Sealed optics
• ABS plastics
• Signal Strength Indicator on the Device
• Pyronix High Security Wireless Protocol Encryption
• 868MHz Transceiver FM technology
• Complies with EN50131-1

Technical Specifications:

Detectors technical characteristics

• Two-way wireless technology : Yes
• Blue Wave technology : Yes
• Automatic sensitivity ; Yes
• Digital temperature compensation : Yes
• Tamper protection : Front and rear
• Signal Strength Indicators (SSI) : Yes

Enforcer two-way wireless technology

• Signal Strength Indicators (SSI) : Yes
• Instant two way device control (ITDC) : Yes
• Pyronix high security two way wireless data encryption protocol (TDE) : Yes
• Pyronix intelligent jamming detection : Yes
• Programmable wireless supervision time : Yes
• 868MHz transceiver FM technology : Yes
• One push to learn : Yes
• Tranmission method : Fully encrypted rolling
• Transmission range : 1.6km in open space

Optical, lens and detection characteristics

• Maximum range : 12m
• Volumetric coverage : Yes
• Coverage angle : 85 degree
• Detection zones : 60
• Detection planes : 7

Mounting

• Optimum coverage height : 1.8 - 2.4m
• Certified mounting height : 2.4m

Environmental and operating features

• Storage temperature : -20°C to 50°C
• Certified operating temperature : -10°C to 40°C
• Nominal operating temperature : -10°C to 50°C
• Physical dimensions (H x W x D) : 117 x 69 x 50mm

Electrical & battery

• Battery type : 1 x CR123A
• Battery life : up to 2 years
• Battery voltage : 3.0V
• Low battery threshold : 2.5V +/- 5% at 25°C

Certifications and warranty

• Electrical conformity : CE
• EN Certificate : EN50131-2-2:2008, EN50131-5-3:2005+A1:2008
• Certification type : IMQ
• Certificate number : CA12.01325
• Environmental class : II
• Warranty : 2 years
• Security Grade : Grade 2
