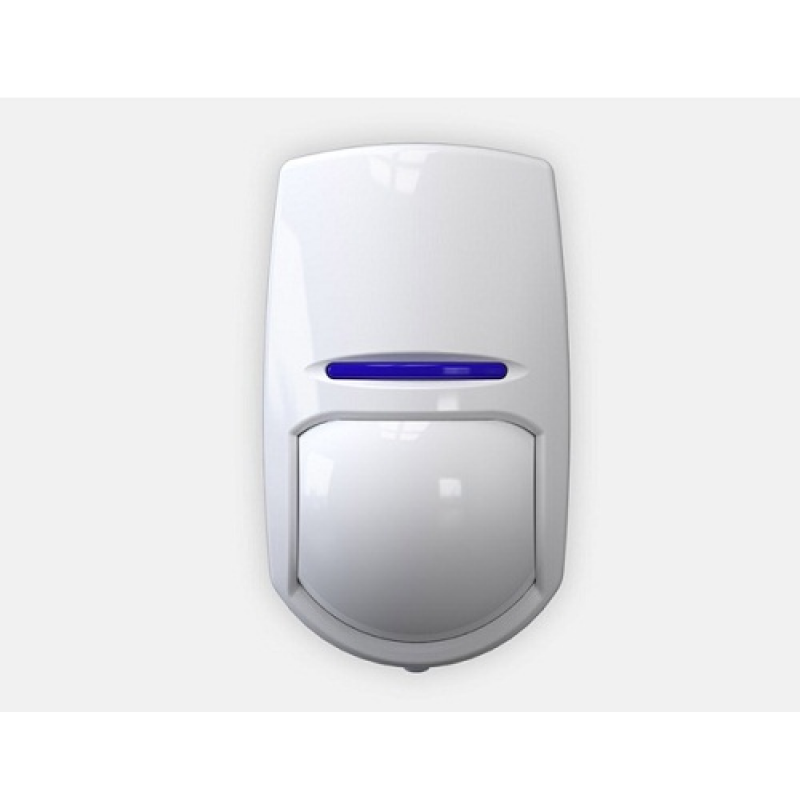

Pyronix (KX10DTP3-WE) 10m Wireless Dual Technology Pet Immune Detector

Pyronix (KX10DTP3-WE) 10m Wireless Dual Technology Pet Immune Detector

Being wireless the KX10DTP-WE can be fitted and programmed in your property with minimum fuss and mess whilst giving you a highly secure, pet friendly security system.

The dual technology system needs both sensors inside the KX10DTP-WE to be triggered before the alarm is sounded reducing the risk of false alarms.

Two Way Wireless Technology
Each wireless device on the Enforcer system, including movement detectors is a transmitter and a receiver. The wireless technology used on the Enforcer system holds a significant advantage over one way and some two way wireless products currently available on the market.

Instant two way Device Control (ITDC)
The ITDC technology enables instant wake up and instant sleep of each device on the system, allowing continuous communication between the control panel and wireless devices while preserving battery power. This technology not only provides installers with total control of each device, but also gives users peace of mind that they have a reliable and secure wireless system.

- Ensuring that all wireless detection devices know when the system is armed and disarmed.
- Ensuring that they are awake as soon as the system is armed.

Signal Strength Indicator (SSI)
One of the key advantages of implementing of the SSI technology is to allow the installer to view the wireless transmission signal strength on both the control panel and wireless devices in real time.

Sealed optics
Protects from possible infestation from insects, shields air movement in front of the pyro-electric sensor and protects against adverse reflections from inside the detector housing.

ABS plastics 3mm
Polished finish, reduces electrostatic interference on the PIR sensor.

Blue wave technology
This technology further enhances the detector’s immunity to infra-red noise in the environment. BWT comprises of 2 key components: 1). The new 3D optics system enables perfect focussing of the infra-red signal onto the pyro-electric sensor. This allows BWT to clearly identify the positive and negative signal edges. 2). Powerful software embedded into a microprocessor is used to process the received information from the pyro-electric sensor. The result of this combination is lower infra-red signal noise amplification and therefore better immunity.

Key Features:

• Less mess, less fuss, simply excellent performance with two way wireless technology
• Longer battery life with instant two way device control (ITDC)
• Highly secure 868MHz Transceiver FM technology
• ABS plastics & sealed optics
• 10m pet friendly detection (up to 20kg)

Technical Specifications:

Detectors technical characteristics

• Two-way wireless technology : Yes
• Blue Wave technology : Yes
• Automatic sensitivity : Yes
• Digital temperature compensation : Yes
• Tamper protection : Front and rear
• Separate LED indication : Microwave, PIR, Alarm
• Signal Strength Indicators (SSI) : Yes
• 3 microwave frequencies to avoid interference : Yes

Enforcer two-way wireless technology

• Signal Strength Indicators (SSI) : Yes
• Instant two way device control (ITDC) : Yes
• Pyronix high security two way wireless data encryption protocol (TDE) : Yes
• Pyronix intelligent jamming detection : Yes
• 868MHz transceiver FM technology : Yes
• One push to learn : Yes
• Tranmission method : Fully encrypted rolling
• Transmission range : 300m in open space

Optical, lens and detection characteristics

• Maximum range : 10m
• Dual technology : Yes
• Animal immunity : 25kg
• Detection speed : 0.3- 3.0m/s
• Detection zones : 52
• Detection planes : 5

Mounting

• Wall mounted : Optional
• Ceiling mounted : Optional
• Optimum coverage height : 1.8 - 2.4m
• Certified mounting height : 2.4m

Environmental and operating features

• Storage temperature : -20°C to 50°C
• Certified operating temperature : -10°C to 40°C
• Nominal operating temperature : -10°C to 50°C
• Physical dimensions (H x W x D) : 117 x 69 x 59mm

Electrical & battery

• Battery type : 2 x 3.0V CR123A
• Battery life : Up to 2 years
• Battery voltage : 3.0V

Certifications and warranty

• Electrical conformity : CE
• EN Certificate : EN50131-2-4:2008, EN50131-5-3:2005+A1:2008, PD6662:2010
• Certification type : IMQ
• Certificate number : CA12.01484
• Environmental class : II
• Warranty : 2 years
• Security Grade : Grade 2
