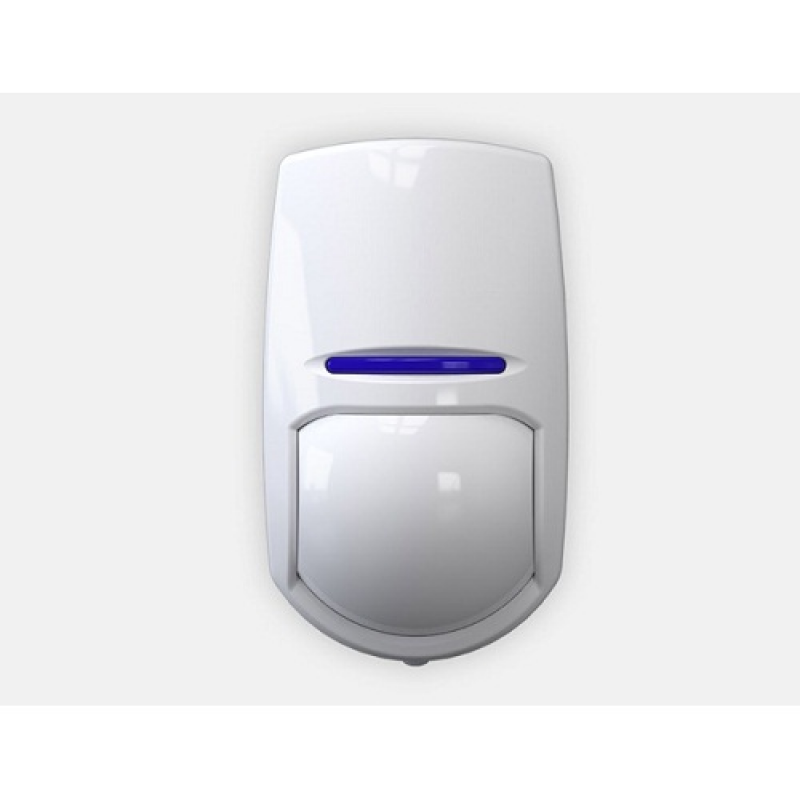

Pyronix (KX10DP-WE) Two Way Wireless 10m Pet Immune PIR Detector

Pyronix (KX10DP-WE) Two Way Wireless 10m Pet Immune PIR Detector

With two way wireless technology this pet tolerant detector is the ideal choice if you have dogs or cats but still want the extra peice of mind that your home is protected. Using the KX intelligent sensor technology the KX10DP-WE can identify the diference between your prized pet and an intruder.

Being wireless there is also minimal disruption when you have your system fitted. With a choice of Keyfobs, proximity tags, using a code or if you chose the HomeControl+ System, your smart phone or tablet to arm and disarm your system using the system couldn't be easier.

Signal Strength Indicator (SSI)
One of the key advantages of implementing of the SSI technology is to allow the installer to view the wireless transmission signal strength on both the control panel and wireless devices in real time.

Blue wave technology
This technology further enhances the detector’s immunity to infra-red noise in the environment. BWT comprises of 2 key components:

The new 3D optics system enables perfect focussing of the infra-red signal onto the pyro-electric sensor. This allows BWT to clearly identify the positive and negative signal edges.

Powerful software embedded into a microprocessor is used to process the received information from the pyro-electric sensor. The result of this combination is lower infra-red signal noise amplification and therefore better immunity.

10m Pet Immune detector
The detectors intelligent PI (Pet Immune) technology analyses the difference between an intruder and a pet signal, with immunity up to 20kg and 10m coverage range.

Digital Temperature Compensation
When the product is used in a hot environment this technology digitally adjusts the detector’s sensitivity allowing it to maintain its range even when the background room temperature is almost equal to the external body temperature of 32ºC (internal body temperature = 37ºC)

Sealed optics
Protects from possible infestation from insects, shields air movement in front of the pyro-electric sensor and protects against adverse reflections from inside the detector housing.

ABS plastics
3mm polished finish, reduces electrostatic interference on the PIR sensor.

Key Features:

• 10m Pet tolerant detection up to 20kg
• Dual element pyro-electric sensor
• Blue wave technology
• Digital temperature compensation
• Sealed optics
• Signal Strength Indicator on the device
• One Push To Learn Button
• 868MHz Transceiver FM technology
• Pyronix High Security Wireless Protocol Encryption
• Complies with EN50131-1

Technical Specifications:

Detectors technical characteristics

• Blue Wave technology : Yes
• Automatic sensitivity : Yes
• Digital temperature compensation : Yes
• Tamper protection : Front and rear
• Signal Strength Indicators (SSI) : Yes

Enforcer two-way wireless technology

• Signal Strength Indicators (SSI) : Yes
• Instant two way device control (ITDC) : Yes
• Pyronix high security two way wireless data encryption protocol (TDE) : Yes
• Pyronix intelligent jamming detection : Yes
• Programmable wireless supervision time : Yes
• 868MHz transceiver FM technology : Yes
• One push to learn : Yes
• Tranmission method : Fully encrypted rolling
• Transmission range : 1.6 km in open space

Optical, lens and detection characteristics

• Maximum range : 10m
• Animal immunity : 24kg
• Detection zones : 52
• Detection planes : 5

Mounting

• Optimum coverage height : 1.8 - 2.4m
• Certified mounting height : 1.24m

Environmental and operating features

• Storage temperature : -20°C to 50°C
• Certified operating temperature : -10°C to 40°C
• Nominal operating temperature : -10°C to 50°C
• Physical dimensions (H x W x D) : 117 x 69 x 50mm

Electrical & battery

• Battery type : 1 x CR123A
• Battery life : up to 2 years
• Battery voltage : 3.0V
• Low battery threshold : 2.5V +/- 5% at 25°C

Certifications and warranty

• Electrical conformity : CE
• EN Certificate : EN50131-5-3: 2005 + A1: 2008, EN50130-4: 1995 + A1: 1998 + A2: 2003, EN61000-6-3: 2007
• Certification type : IMQ
• Certificate number : CA12.01426
• Environmental class : II
• Warranty : 2 years
• Security Grade : Grade 2
