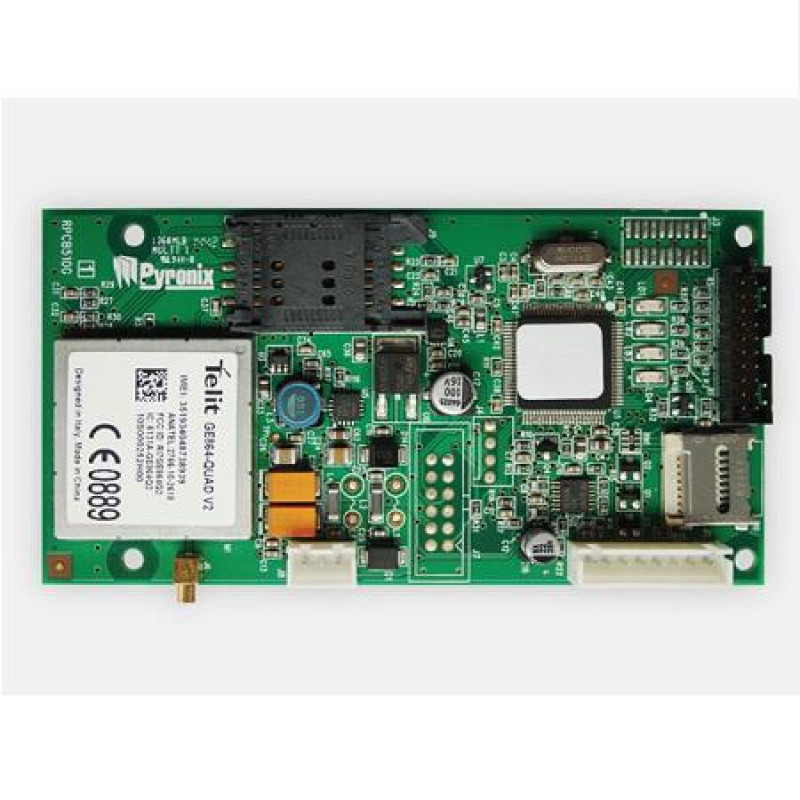

Pyronix (DIGI-GSM) GSM Modem for the Enforcer and Euro 46

Pyronix (DIGI-GSM) GSM Modem for the Enforcer and Euro 46

Digi GSM Modem for PCX 46 panels v9 and above and Enforcer v9 and above. The Digi-GSM provides SMS text messaging for communication of alarm events, remote control and remote diagnostics for the Enforcer control panel. It also communicates Fast Format and Contact ID.

An antenna is supplied on purchasing the Digi-GSM and can be easily installed on an existing or new installation.

Please note a SIM card is not supplied.

Up/downloading over GSM
Allows communication between the panel and PC running our unique UDL software for up/downloading, diagnostic interrogation, and Automatic Remote Maintenance (ARM©) (subject to network).

ARC Signalling over GSM
Allows alarm messages to be sent to a central alarm receiving centre via common protocols Fast Format and SIA.

SMS Messaging over
GSM Allows text messages to be sent via GSM directly to up to 4 mobile telephones.

Key Features:

• Digi GSM Modem for Enforcer32-WE and PCX 46 v9 and above.
• Up/download over GSM
• ARC signalling over GSM
• SMS messaging over GSM

Technical Specifications:

Communications and modems

• Formats : Fast Format, Contact ID, SMS , supports upload/downloading
• Baud Rate: 9600bps

Environmental and operating features

• Physical dimensions (H x W x D) : 110 x 56 x 10mm

Electrical & battery

• Operating voltage : +12VDC
• Quiescent current consumption : 40mA (In use: 420mA)

Certifications and warranty

• Electrical conformity : CE
• EN Certificate : EN 61000-6-3:2007, EN 50130-4: 2011, EN 60950-1:2006 +A12: 2011, ETSI EN 301 511:V9.0.2, ETSI EN 301 489-1 V1.8.1/ -7 V1.3.1, EN 50136-1-1: 1998 + A2: 2008, EN 50136-2-1: 1998 + A1: 2001
• Environmental class : II
• Warranty : 2 years
• Security Grade : Grade 2
