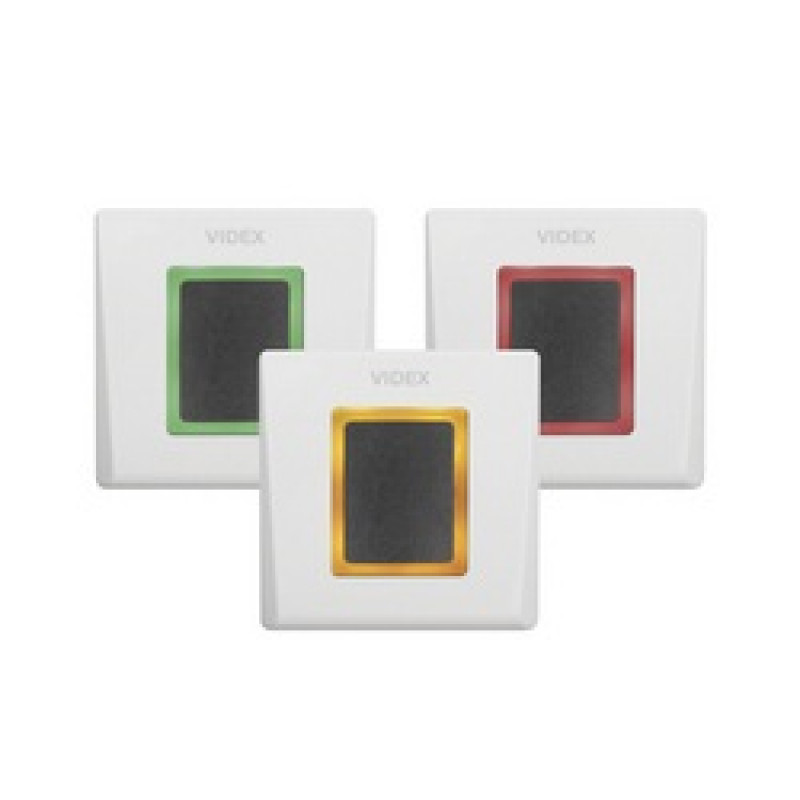

Videx, DINMTPXW-MF-SA, MiAccess Flush Proximity Reader (White)

Videx, DINMTPXW-MF-SA, MiAccess Flush Proximity Reader (White)

Flush Mifare, standalone OFFLINE proximity reader with smart Mifare PC programming and USB port (white). MiAccess is a new offline, standalone proximity access control system.

The system is ideal for a wide range of buildings that have single or multiple entrances. This includes offices, residential homes and small guest houses, as well as fitness centres, caravan parks and small hotels.

The beauty of the offline access control system is that it can be part of a multiple entrance (80 maximum) system without the need to cable between devices. This means that it’s extremely easy to install and very cost effective too, ideal for smaller installations saving installation time while still maintaining system flexibility.

This is a complete user-friendly and competitive access control solution. It’s perfect for sites where an online solution cannot be used due to cable restraints, or when a network system is simply not needed. The installation is much easier because the only cabling requirements are to the lock release mechanism and a power supply.

Key Features:

• Mifare Reader with sector read/write and support for Mifare classic, 1K and 4K card types
• Read range up to 6cm with an operating frequency of 13.56MHz
• Unlimited user capacity with up to 3500 events logged
• Programmable relay time
• Programming and configuration using PC software (PROA-MS for access control and PROH-MS for hotels and guest houses)
• Collecting events directly from the reader via the micro-USB connection or from a programmed 'events collect card'
• Includes feature to 'black list' cards that have been lost or stolen (up to 500 cards max.)
• Personalised access rights for each user are registered directly onto a user's individual card
• Scheduled activation feature with 4 definable actions of lock, unlock based on the time and day of the week
• Firmware upgrades supported via the micro-USB connection

Technical Specifications:

• Operating Voltage: 12Vdc power input
• Current Consumption: 150mA (max.) during operation
• Data Connectivity: micro-USB port for connection to a PC
• Inputs: push button
• Tamper Protection: Yes
• Status Indication: Tri-colour halo LED (amber, green and red) and buzzer
• Working Temperature: -20°C to +50°C
• Dimensions (mm): 86 (W) x 86 (H) x 40 (D) for standard UK single gang box.

For more details, please refer with our attached datasheet.
