Videx, PPCU2, Lockable Boxed 2 Door Controller (RS485 & TCP/IP) C/W 3.5A PSU

PPCU2, Videx, Lockable Boxed 2 Door Controller (RS485 & TCP/IP) C/W 3.5A PSU

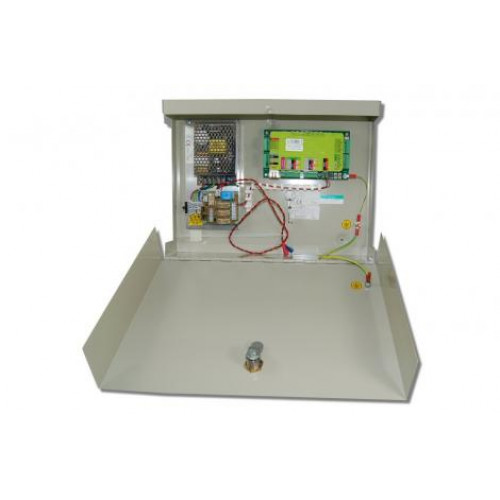

A lockable metal enclosure with a 2 entrance Portal Plus access control card and 3.5A 13.8Vdc switched mode power supply. There is also room in the enclosure for a 7Ah 12V battery (Not included). The PSU has three independently fused outputs, battery trickle charge circuit and output healthy LED's. The controller includes TCP/IP for network connection & RS485 connectivity to other cards and a PC as well as 2xreader inputs, 2xlock outputs (Dry contact change over relays), 2xpush to exit button inputs, 2x door monitoring inputs, 2x free inputs for programmable services and 2x dry contact relay outs for programmable services.

Specifications:

• Dimensions: 360mm(W) x 266mm(H) x 75mm(D)
• Material: Powder coated steel
• Lockable: Yes
• Control PCB: 2 door
• Communication protocols: Wiegand, RS485
• Aux inputs: 2
• Aux outputs: 2
• Power supply: 13.8Vdc 3.5A (Three fused outputs)
• Battery back up facility: Yes

For more details, please refer with our attached datasheet.
