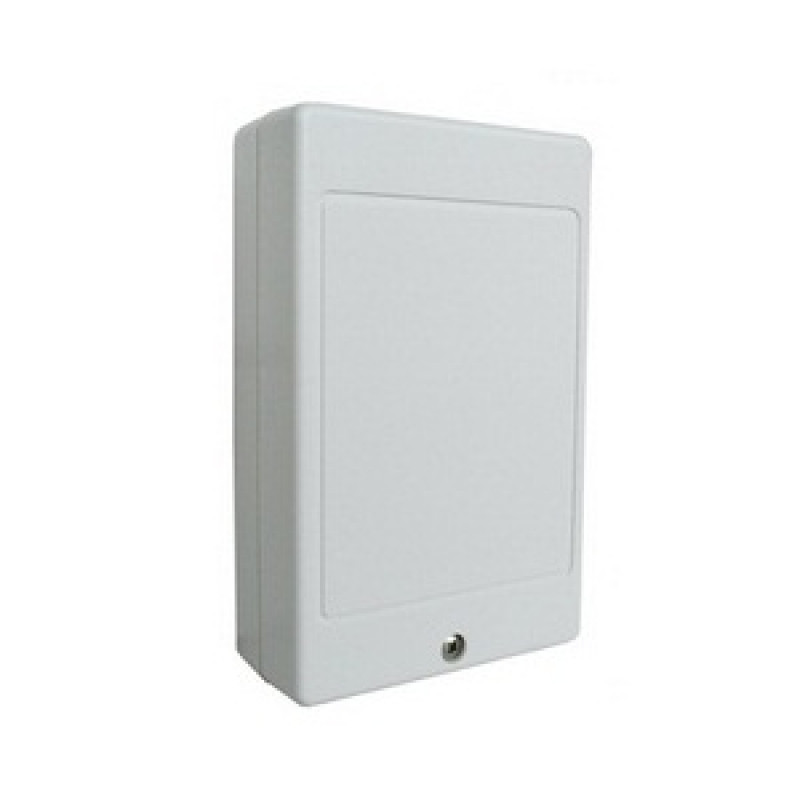

Videx, 317N, 4 Way Video Splitter

Videx, 317N, 4 Way Video Splitter

This unit distributes the bus signal to 4 outputs linking to video phones or audio phones. It contains a switch to enable (active) or disable (passive) the amplification. If active the amplification can be adjusted in a linear way using a built in trimmer. Amplification only effects the 4 outputs and not the main bus. Included is bus isolation, which isolates the 317N from the rest of the bus in case a short on one of the outputs. Included are bus termination switches in case an output is unused.

Key Features:

• 4 way audio / video distributor with amplification

Technical Specifications:

• Dimensions : 70mm x 110mm x 30mm
• Housing : White ABS plastic
• Outputs : 4
• Bus termination : Yes : switches
• Isolation : Yes
• Powered : From BUS
