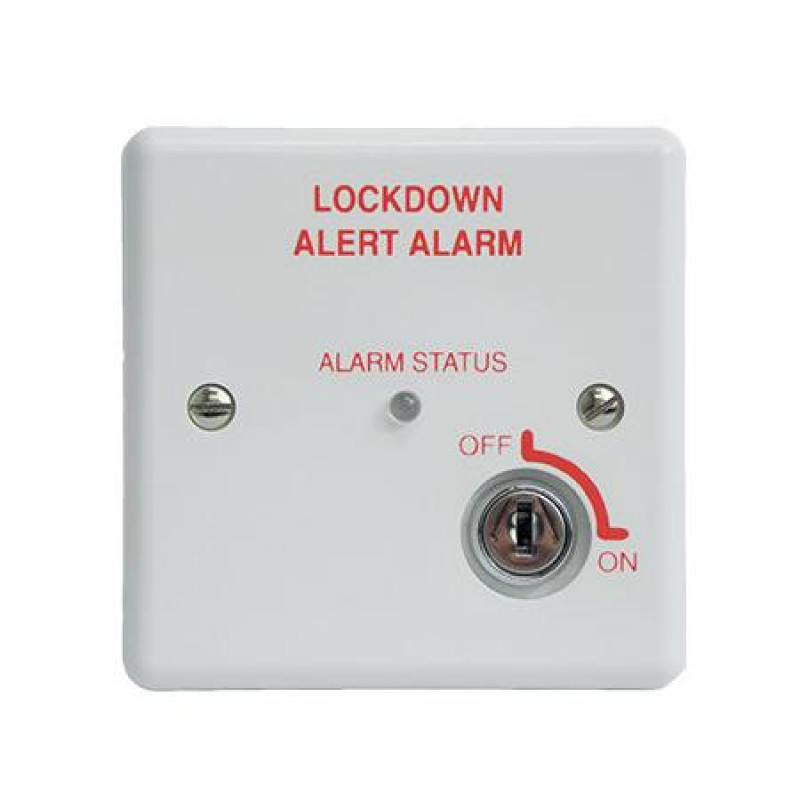

HAES, BRLDA, Lockdown Alert Alarm Pulsing Relay

The lockdown alert alarm relay has been developed to be used in conjunction with a fire control panel to provide a pulsing or continuous alert of the impending lockdown of a building, but may be suitable for other key switch operated relay applications.

The 8A double pole relay can be supplied from 17-30v dc and is triggered via the on board key switch.

The ON time and OFF time of the relay can be individually programmed via DIL switch settings up to 15 seconds. Supplied in white ABS casing with back box, suitable for surface or flush fitting.

Key Features:

• Developed to provide a pulsing or continuous alert of the impending lockdown of a building
• Designed to be used in conjuction with the class change inputs of a fire control panel
• Key switch activation
• Suitable for surface or flush fitting
• Red Alarm Status LED indication
• Double pole 8A relay
• Pulsing relay
• Programmable ON/OFF times in steps of 1 second, up to 15 seconds

For more details, please refer with our attached datasheet.
