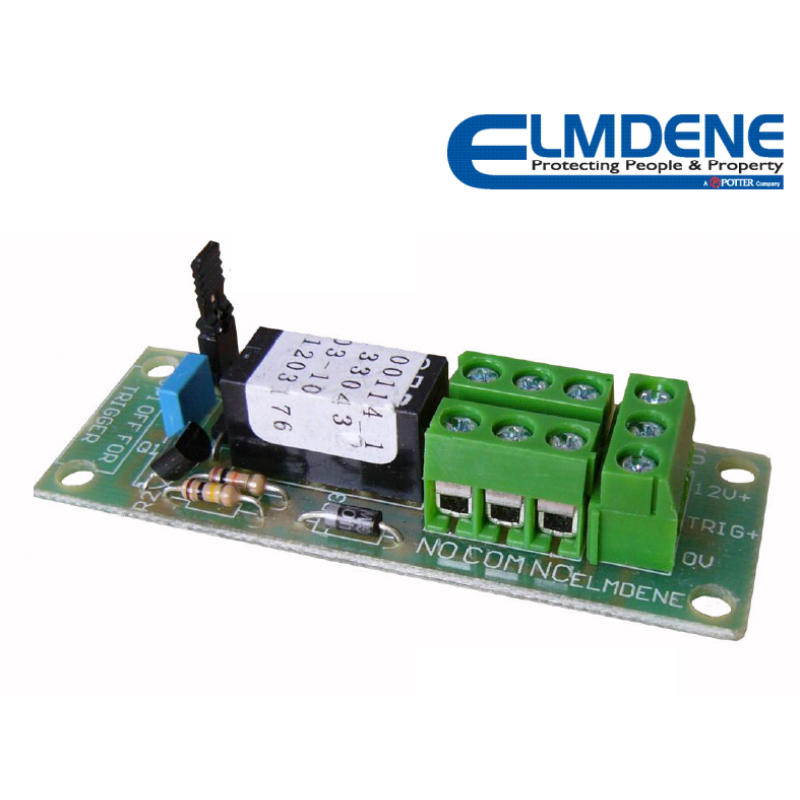

Elmdene MPR001, 12V DC Multipurpose Relay 2 x Changeover Contacts (Grade 3)

Elmdene MPR001, 12V DC Multipurpose Relay 2 x Changeover Contacts (Grade 3)

The multi purpose relay provides two sets of relay changeover contacts capable of being driven from a normal 12V supply or low current trigger input.

Features:

• 2 volt-free changeover contacts
• Low current consumption
• Supplied with sticky feet for fixing
• 3 year warranty

Specification:

• Supply: 12-13.8Vdc
• Current: 20mA
• Trigger Input: 1.5mA
• Switch Load: Maximum 1A@ 24V dc or 0.5A @ 125V ac
• Dimensions: 72 L x 26 W x 20 D
• Grade: 3
