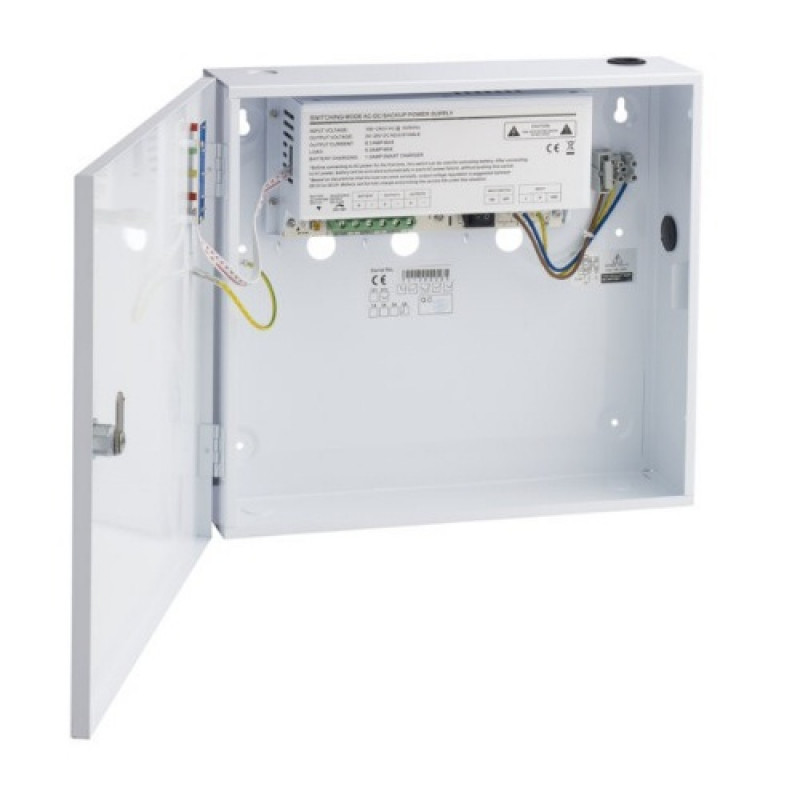

SSP, PSU3A-24, 24Vdc 3 Amp Multi-indicator Boxed Power Supply
- Brand:SSP
- Product Code:PSU3A-24
- Availability:Please Call or Email to Checkout
SSP, PSU3A-24, 24Vdc 3 Amp Multi-indicator Boxed Power Supply
The PSU3A-24 is 24v Range of Power Supplies is available in a variety of outputs and metal enclosures. Available in 1, 2, 3 & 5 Amp, the EM Range is a Multi Indicator (Mains On & Fault) Power Supply. The outputs are exclusive of the battery charging facility.
Key Features:
- 24Vdc
- 3amp
- Metal Box
- Hinged Lid
- 305(H) x 304(W) x 85(D)mm
- 27.6 v DC Regulated Output
- Full Current to Load
- Additional Battery Charging Current
- Short Circuit protection
- Mains Present Indicator
- Fuse Blown Indicator
- Mains transient protection
- On Board Voltage Free contacts that Signify Power Supply failure.
- Battery Current limiting protection circuit.
Technical Specification:
- MAINS INPUT: 220 - 240V AC 50/60HZ
- LOAD VOLT REGULATION: 5% Maximum
- FAULT INDICATOR L.E.D. (RED): Fuse blown fault
- BATTERY: 24 Volt Sealed lead acid maximum 2 x 7ah
- ENVIRONMENT: Ambient Temp -20 to + 40C Relative Humidity 10 to 90%
- OUTPUT RIPPLE: < 5% OF THE NOMINAL DC OUTPUT VOLTAGE
- D/C OUTPUT: Full Stated Load @ 27.6v DC excluding Battery Charging circuit
