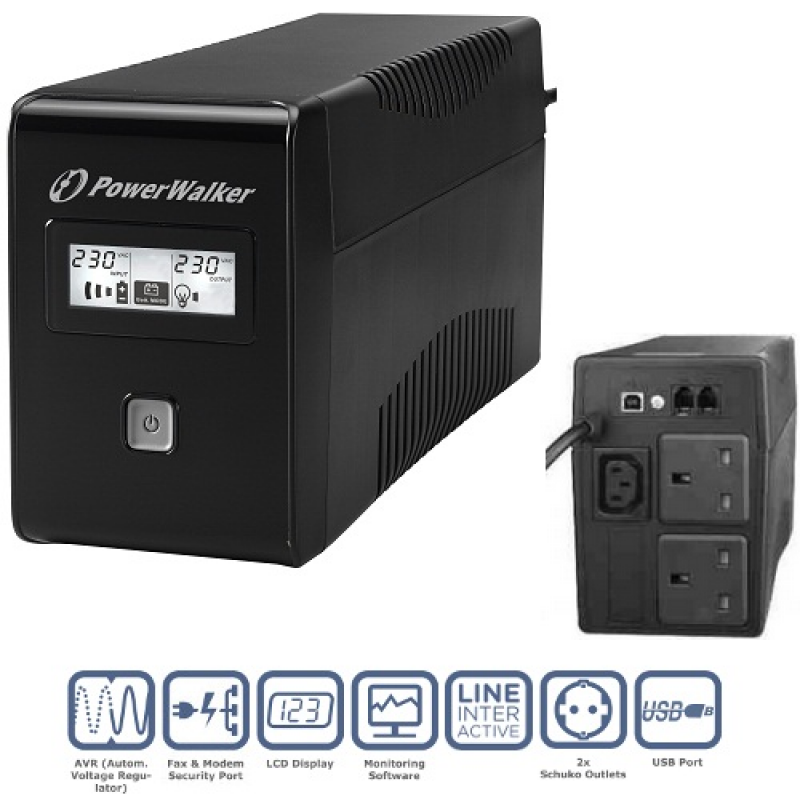

PowerWalker VI 850VA LCD/UK UPS (480W)

PowerWalker VI 850VA LCD/UK UPS (480W)

PowerWalker VI LCD provides comprehensive protection and high power density in small and economic package. Compared to traditional UPS towers of the same size, this UPS is more compact and offers greater comprehensive power protection against surges and spikes. Equipped with a voltage stabilizer, this UPS will continue providing clean and stable power to connected equipment and is perfect for any home or small office application.

Key Features:

• LCD panel with operating information: Power Input or Output, Mode AC or Battery, Load Level, Battery Level
• Surge Filter for phone line and modem
• USB Communication and ViewPower software for controlling and monitoring

Technical Specifications:

General features

• Type : Line-Interactive
• Power capacity : 850VA / 480W
• Output Power Factor : 0.56

Input

• Input Voltage Range : 162-290 VAC
• Frequency (Synchronized Range) : 50Hz or 60Hz

Output

• Nominal Output Voltage : 230 VAC
• Voltage Regulation (Bat. Mod.) : ±10%
• Frequency (Battery Mode) : ±1Hz

Technical details

• Transfer Time [AC to Battery] : 2-6ms
• Overload Capacity : N/A
• Fan Logic : No fan
• LCD Indicators : AC mode, Battery mode, Load level, Battery capacity, Input voltage, Output voltage, Overload alarm, Fault alarm, and Low battery alarm

Efficiency

• LINE mode full Load : 97.2%

Batteries and autonomy time

• Batteries : 1x 12V/9Ah
• DC Voltage : 1 x 12V
• Recharge Time : 4h to 90%
• Full Load Backup Time : 0.1min
• Half Load Backup Time : 3min

Connections and communication

• CEE 7/3 (Type F) Outlet : 2
• Input : CEE 7/7
• Software : ViewPower
• USB port : Yes
• RJ-11 protection : Yes

Environment

• Temperature : 0°C – 40°C
• Humidity : 0% - 90% RH (non-condensing)

Logistics

• Package Content : UPS, Manual, Software CD, USB Cable
• Manual Languages : EN/DE/FR/ES/IT/PT/SE/FI/NO/TR/RU/UA/BY/PL/CZ/HR/HU/BG/KZ/SR
• EAN : 4260074972665
• Width : 100 mm
• Height : 142 mm
• Depth : 287 mm
• Weight : 5 kg
• Carton - Width : 350 mm
• Carton - Height : 250 mm
• Carton - Depth : 590 mm
• Carton - Weight : 22.1 kg
• Pcs. per box : 4
• Pcs. per layer : 16
• Pcs. per pal : 128

For more details, please refer with our attached datasheet.
