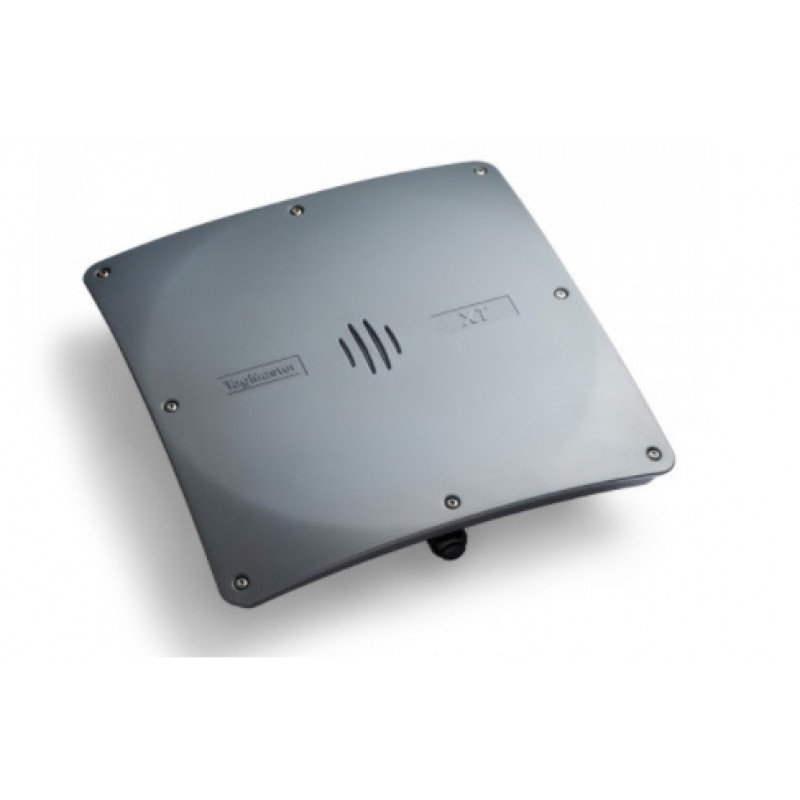

XT-1LR, Long Range Reader
- Brand:Vanderbilt
- Product Code:XT-1LR
- Availability:Please Call or Email Us to Check Availability
XT-1LR, Long Range Reader
XT-1 and XT Mini are EPC Gen 2 (ISO 18000-63) compliant RFID readers with integrated antennas. Both readers are tailored for Automatic Vehicle Identification applications such as Parking, Gated Communities and Condominiums. As such, the readers are designed for outdoor use and support a large number of interfaces and protocols. While XT-1 is a generic reader with maximum possible read range, XT Mini is optimized for pole mounting close to the vehicle lane.Encoder reader for 3CT. Connected to your PC via USB-port.
Key Features:
- Easy-to-use and install
- Attractive price/performance
- Robust and weatherproof design, IP66
- Read range up to 8 metres (26 ft)
- Operates with passive UHF tags.
Specifications:
- Outputs:3 isolated outputs
- Output current:2W
- Inputs:3 isolated inputs
- Operating temperature:-40°C to +60°C
- Frequency:865.6 MHz - 867.6 MHz
- Dimensions (L x W x H):300mm x 300mm x 60mm
- Card read distance:Up to 8m
- Power consumption:10W (max 12W)
- Interface to controller:Wiegand/Clock&Data RS485
- Operating voltage:12-24VDC
- Housing material:Aluminium
- Housing protection:IP66
- Storage temperature:-40°C to +85°C.
For more details, please refer with our attached datasheet.
Contact us on sales@hunters-wholesalers.co.uk for more specific product information and pricing installation and training.
