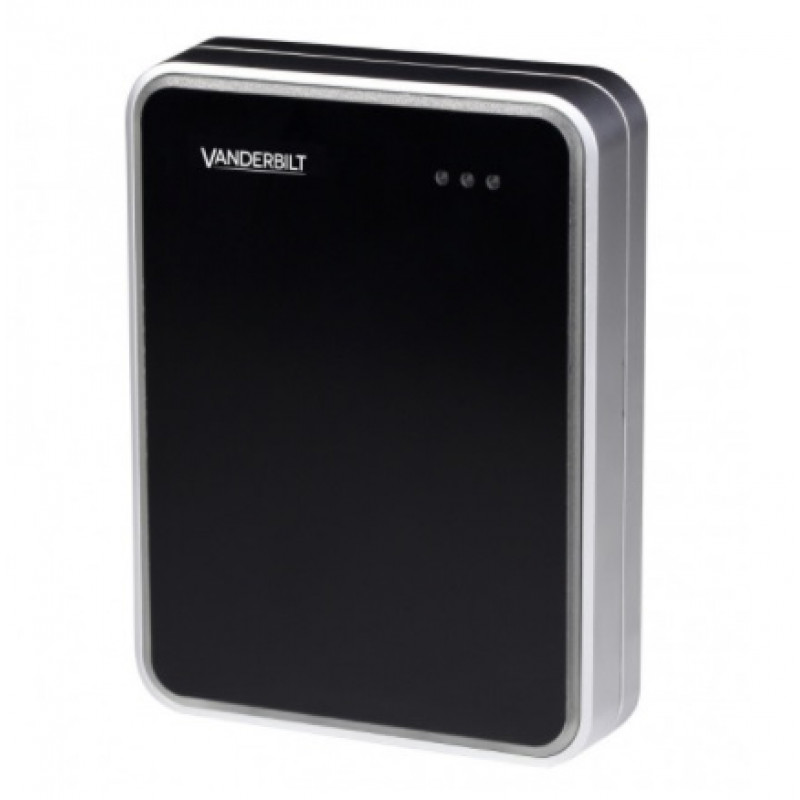

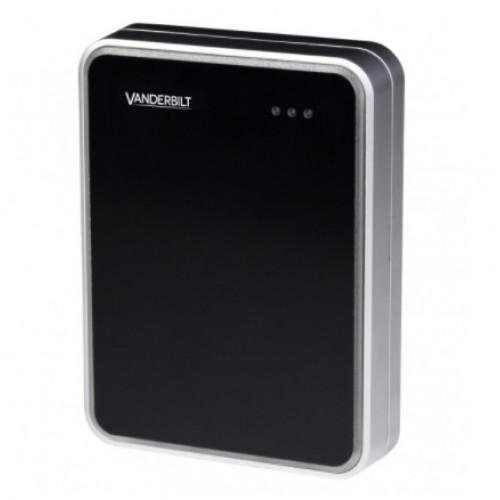

VR10S-MF, NGCR MIFARE EV1 Card Reader

VR10S-MF, NGCR MIFARE EV1 Card Reader

Designed for today’s bright, clean interiors, yet robust in service, the VR10S-MF is easy to install, use and maintain. The VR10S-MF has three indicator LEDs and a multi tone buzzer for audio verification. A multicolour light frame enforces access status information. This can be configured to follow the indicator LEDs, or any number of different options.

Specifications:

• Display: No
• Interface to controller: RS485 OSDP
• Card technology: MIFARE
• Operating voltage: 8.5 – 30.0 VDC
• Current consumption: DC 12V 43mA Peak 168mA DC 24V 26mA Peak 100mA
• Housing protection: IP55 (surface mounted) IP3X (back box mounted)
• Colour: Black, matt chrome
• Housing material: Zinc casted metal bezel with polycarbonate plastic front
• Card read distance: Up to 6 cm
• Operation temperature: -40°C to +55°C (surface mounted) -10°C to +55°C (back box mounted)
• Weight: 0.622kg
• Approval: CE according to R&TTE and EMC Directives; RED; FCC; UL (pending)
• Air humidity (EN 60721): 5-95% non-condensing
• Impact rating: IK08
• Indicators: 3 x LED (red/yellow/green); 1 x Buzzer; Multicolor light frame
• Card compatibility: MIFARE Classic; MIFARE Plus (UID only); MIFARE DESFire EV1; MIFARE DESFire EV2 (to EV1 conditions only)
• Tamper protection: Yes
• Environment: Indoor or outdoor use
• Keypad: No
• Power consumption: DC 12V = 43mA (168mA Peak); DC 24V = 26mA (100mA Peak).

For more details, please refer with our attached datasheet.
