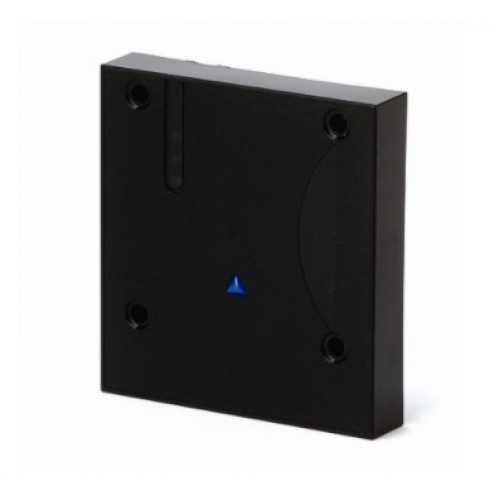

PM500-EM, Prox 125kHz Reader Panel Mount
- Brand:Vanderbilt
- Product Code:PM500-EM
- Availability:Please Call or Email Us to Check Availability
PM500-EM, Prox 125kHz Reader Panel Mount
The PM500-EM reads EM4102 cards (also known as Miro or UNIQUE 125 kHz). It is designed to fit most remote call point enclosures. It is supplied with a custom-machined perspex front panel for increased aesthetic appeal. When BC-Link is used, two of these readers can be installed to control entries and exits using only one door controller. An additional benefit of BC-Link is that it supports online status monitoring.
Specifications:
- Card technology: EM4102 (also known as Miro or UNIQUE 125 KHz)
- Operating voltage: 10.6 to 32 VDC
- Operating temperature: -30 to +50 °C
- Environment: Indoor or outdoor use
- Colour: Black
- Interface to controller: BC-Link, Clock&Data or Wiegand* (*req.config card)
- Card compatibility: IB41-EM, IB42-EM IB44-EM, IB45-EM
- Keypad: No
- Tamper protection: No
- Operation temperature: -30°C to +50°C
- Housing protection (EN 60529): IP55
- Card read distance: Up to 5 cm
- Current consumption: 20 mA @ 12V DC 24 mA @ 24V DC
- Housing material: High impact polycarbonate outer casing, with encapsulated electronics
- Tamper switch: No
- Indicators: 3 x LED (red/yellow/green) 1 x Buzzer
- Housing protection: IP55
- Housing: High impact polycarbonate outer casing, with encapsulated electronics.
