BLUE-EX, Contactless Door Exit Button
- Brand:Vanderbilt
- Product Code:BLUE-EX
- Availability:Please Call or Email Us to Check Availability

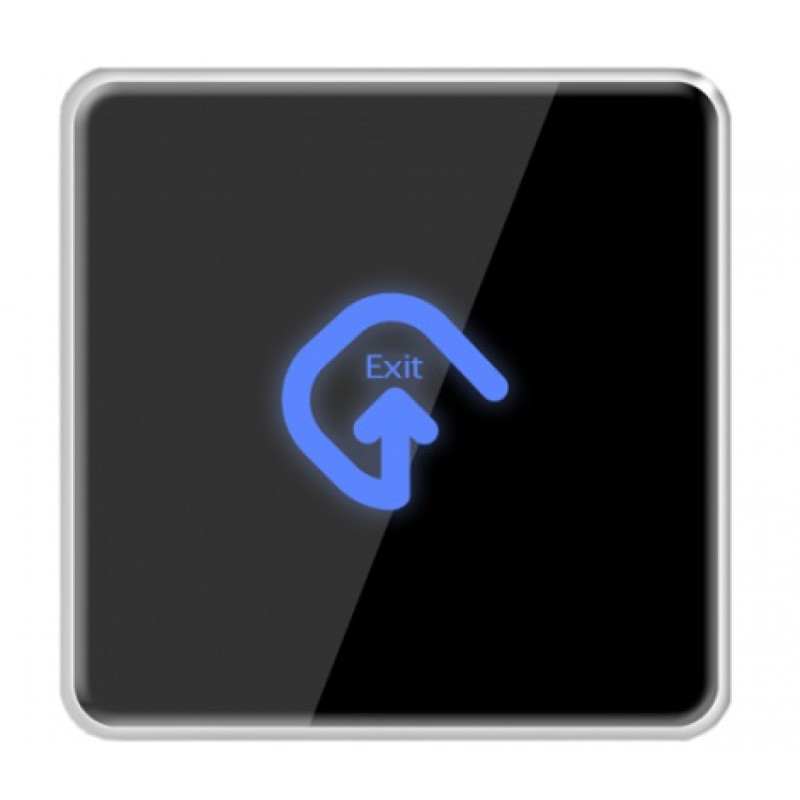

BLUE-EX, Contactless Door Exit Button
The BLUE-EX door exit button facilitates non-contact door release for applications where high standards of hygiene are required. It is designed in the same look and feel as the Bluetooth reader range to round off the family offering.
Specifications:
- Power supply: 12VDC to 24VDC
- Detection characteristics / range: Capacitance proximity with DIP-switch to adjust trigger distance between 2cm and 5cm (default setting - 5cm).
- Mounting: Fit with UK gang box standard
- Relay outputs: NC/NO jumper selectable rated @ 30Vdc; 1A
- Power consumption: 150mA (max. @ 12VDC)
- Dimensions (L x W x H): 92mm x 92mm x 8.5mm
- Air humidity (EN 60721): 10% - 90%
- Housing material: PC, ABS
- Buzzer: Internal audio indicator
- Operating temperature: -20°C to +60°C
- Opening time: Digital timer to control the relay output timing from 1 to 15 sec.
For more details, please refer with our attached datasheet.
