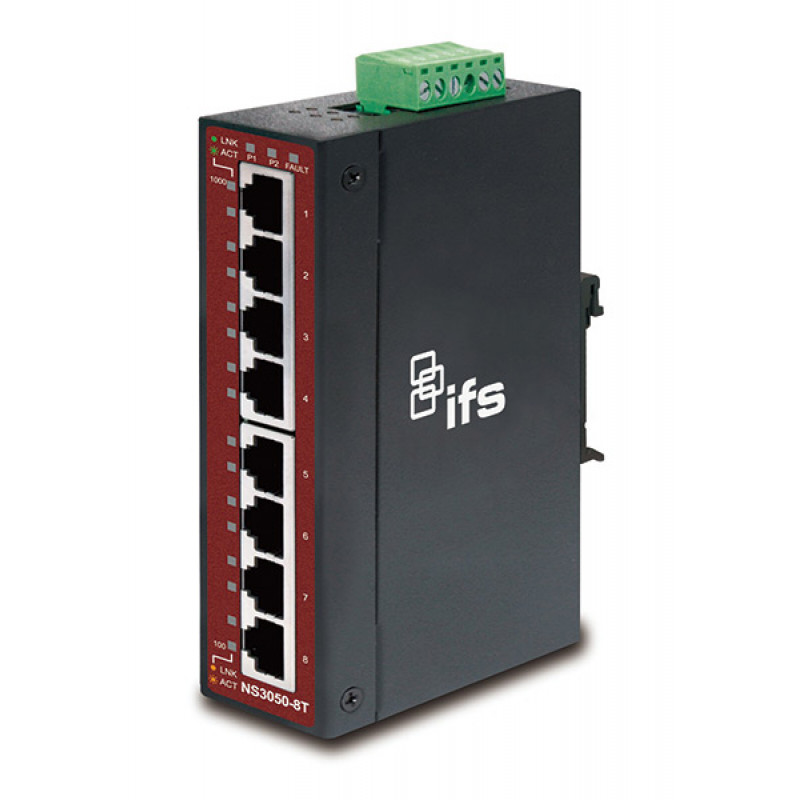

NS3050-8T - 8-Port 10/100/1000Mbps Unmanaged Industrial Gigabit Ethernet Switch

NS3050-8T - 8-Port 10/100/1000Mbps Unmanaged Industrial Gigabit Ethernet Switch

• 8-Port 10/100/1000Base-T RJ-45 ports with auto-MDI/MDI-X function for each port
• Auto-negotiation and 10/100Mbps (half/full-duplex) and 1000Mbps full-duplex mode
• Complies with IEEE 802.3 10Base-T, IEEE 802.3u 100Base-TX, IEEE 802.3ab 1000Base-T Ethernet standards
• EEE (Energy-Efficient Ethernet ) Technology
• Store-and-forward switching architecture, wire-speed
• Back pressure (half-duplex) and IEEE 802.3x PAUSE frame-flow control (full-duplex) to prevent packet loss
• Integrated address-lookup engine with support for 2K absolute MAC address table
• 1.5Mbits SRAM packet buffer
• 9K jumbo packet-size support
• Automatic address learning and address aging
• CSMA/CD Protocol
• IP-30 metal case for protection that allows either DIN-rail or wall mounting
• 12 to 48 VDC and 24 VAC, redundant power with polarity-reverse protection and removable terminal block for master and slave power
• Hardened, Free-fall, shock and vibration stability, operates between -40°C ~ +75°C

For more details, please refer with our attached datasheet.
