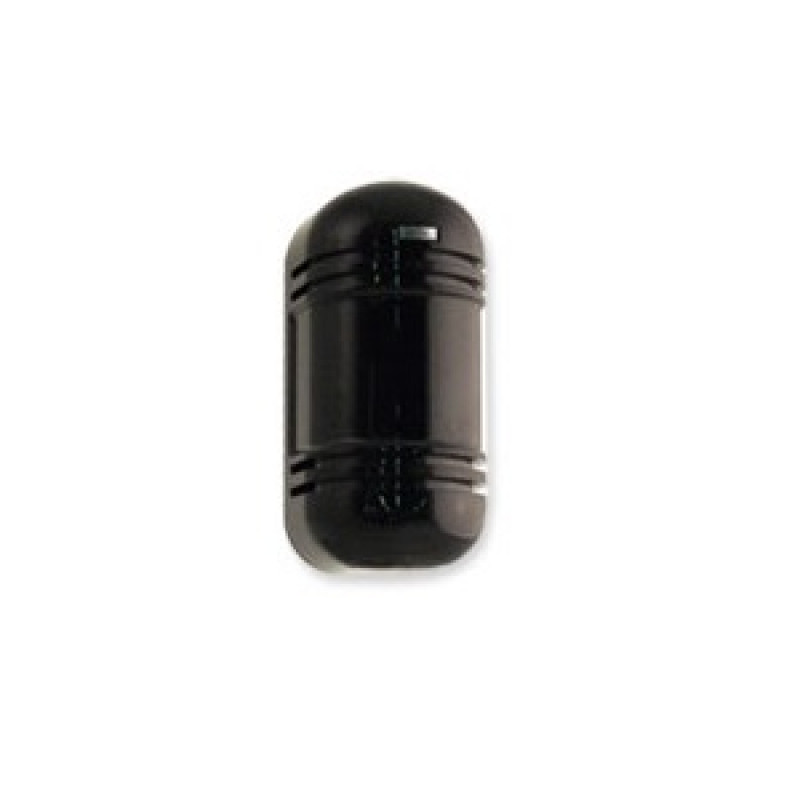

Guardall, W76060, Twin Active IR Beam (SBT F) Indoor/Outdoor - 80M
- Brand:UTC (Guardall)
- Product Code:W76060
- Availability:Please Call or Email Us to Check Availability
Guardall, W76060, Twin Active IR Beam (SBT F) Indoor/Outdoor - 80M
Key Features:
- A range of Twin and Quad active infrared beams (SBT F and SBQ F respectively)
- For indooor and outdoor protection
- Easy to install and flexible
- Contain a high power source the beams provide a better detection range and minimum signal loss
- False alarms are reduced as simutaneous interuption of beams is required for alarm condition to occur
- Can be used in range of security applications, mounted on walls, poles or in columns
- The SBQ F unit contains a digital filter to improve noise rejection and operation in adverse weather conditions
- IMQ level II approval
Specifications:
- Infrared beams 2 beams
- Light Source Infrared LED
- Alarm Output* NC/NO relay contacts
- Tamper Output NC relay contact
- Supply Voltage 10.5-28 V DC
- Current (variant dependant) From 40 to 83 mA
- Temperature Range -25°C - +55°C
- Optical Adjustment +/- 10° vertical
- Optical Adjustment +/- 90° horizontal
- Optical Alignment Viewfinder
- Frost Protection Frost shelter structure
- Frequency channel selection 4 channels
- Fog Disqualification Circuit No
- Monitor Output Signal strength O/P - monitoring indicator
- Housing Polycarbonate (ABS)
- Weight (tx/rx set) 300g
For more details, please refer with our attached datasheet.
