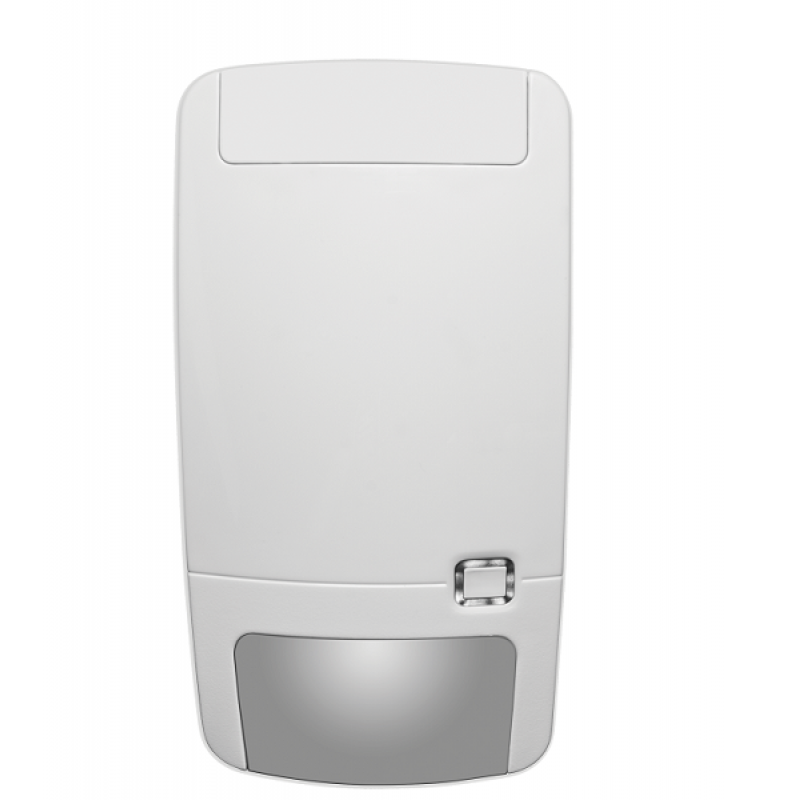

TX-2413-03-1, Wireless Dual 12m 868AM Gen2

TX-2413-03-1, Wireless Dual 12m 868AM Gen2

In essence, these new Dual Technology motion sensors replace the legacy 868AM Gen2 TX-2411-03-1 which had a 12m detection range. A 16m variant TX-2414-03-1 will also be introduced at a later stage and we will send a separate introduction note when this is launched.

One way transmitter

The sensor has a chip-tuned wireless transmitter that communicates with a 868AM Gen2 receiver such as, for example the ATS1235. The learn-in process of the sensor is identical to the process used with legacy sensors. Each sensor reports a unique ID code with each transmission. The sensor also reports the battery and transmitter condition (supervisory signal) to the panel every 18 minutes.

Patented range gated radar technology

This series of wireless motion sensors incorporate a UTC Fire & Security patented and unique range gated radar technology allowing the installer to define a clear borderline of the radar range as the radar is used to measure distance between the sensor and moving objects. Effectively, the detector will not generate nuisance alarms caused by movements outside the detection range. Every motion sensor comes with four possible radar ranges selectable via jumpers allowing the detection range to be tailored according to the room where the motion sensor is installed. The radar operates on 5.8GHz frequency and will not interfere with any Wi-Fi networks.

PIR combined with mirror power

The patented optical mirror technology gives the advantage of gliding focus, which creates a volumetric detection curtain from floor level up to installation height resulting in a sensor that never loses track of the object. In these series we are using a dual element digital pyro generating two volumetric curtains for each of the nine curtain sets.

Detection technologies working together

These dual tech motion sensors generate an alarm depending on what both technologies – range gated radar and PIR – saw within their detection coverage. But our dual tech goes beyond a simple “AND” function : it classifies the signals from each technology – range. This technology creates a uniform sensitivity in all course directions.

Ease and flexibility of installation

The product design allows easy opening and closing of the device and easy access to the mirror optics and the battery. Thanks to the mirror technology used, it will tolerate wall angle deviation and different mounting heights and a limited loss of coverage when objects are placed in the field of the PIR vision. To strengthen the family concept, changing from one variant to another one has been made easier by having only one type of mounting plate for all sensors of this series, which also avoid the need for new drilling required.

Other members of the family

This family includes motion sensors with variants in detection ranges and a Pet Immune variant. The consistent family aesthetics between the various models ensure a professional approach when installing different sensor types.

• Patented selectable range gated radar technology clearly defining the radar detection border
• PIR technology with patented mirror curtain optics
• Intelligent alarm decision based on signal classification of the PIR and radar alarm
• Full under-crawl detection
• No adjustment required for different mounting heights
• Tolerates wall angle deviation
• End-user friendly product design for exchanging batteries
• 3-years battery life with 2 batteries
• Holds several security approvals

For more details, please refer with our attached installation sheet.
