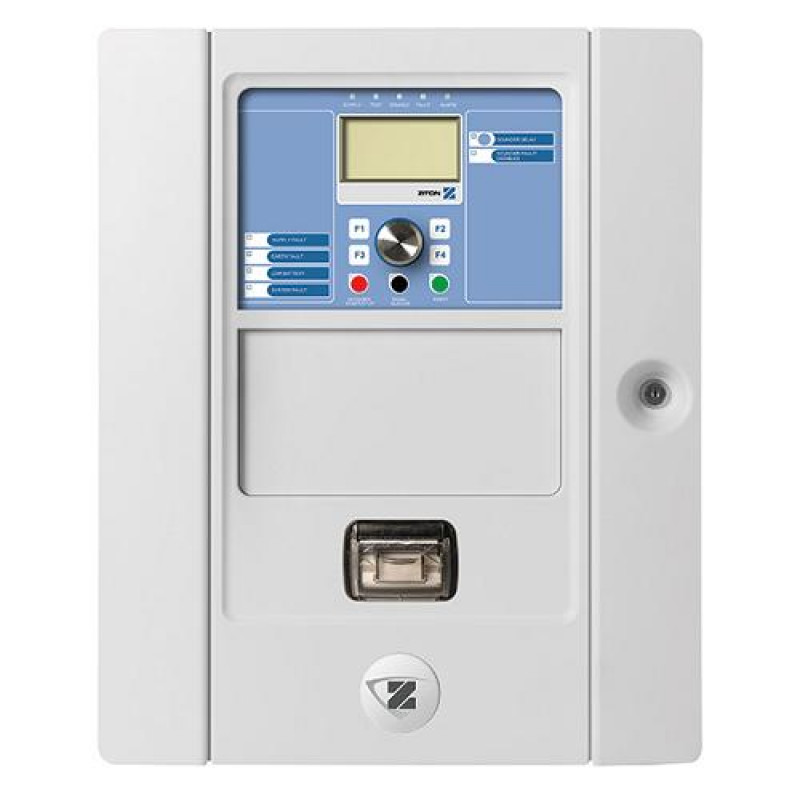

Ziton, ZP2-F2-PRT-99, Addressable Fire Panel W/ UI With Printer (2 Loop)

Ziton, ZP2-F2-PRT-99, Addressable Fire Panel W/ UI With Printer (2 Loop)

The ZP2 Series life safety control systems are bringing the speed and functionality of high-end intelligent processing to small to mid-sized addressable applications. They feature an attractive contemporary design that fits with any decor. Special plastics allows for painting in any color. and the easy to remove electronics will support in this matter. The gently lined door with the intuitive light blue inset user interface and EN54 compliant graphical LCD offers a distinctive flair. The main controls are clearly, but discreetly highlighted with the focus on the central located Jog Dial.

With the addressable detection and a full line of easily configured option cards and modules, USB and Ethernet® connectivity, these quick-to-configure systems offer versatility that benefits building owners and life safety system installers alike.

Key Features:

• Build-in thermal printer with paper replacement from the front
• 2 loops expandable to 4 with up to 512 zones and 300 outputgroups
• Up to 40 LED Zone indicators for Fire and Fault with ample text space
• Auto configuration, setup wizards and default regional setup modes
• Ethernet port with TCP/IP for remote diagnostics, maintenance and programming
• EN54 compliant graphical LCD with icons and up to 256 zones
• Jog Dail with 4 soft buttons for simple and intuitive user control
• Aesthetic pleasing design with special paintable synthetic door
• Easy removable door and chassis for quick and clean installation
• All pluggable connectors
• 3 USB ports with memory stick support and RS232 for printer support
• Email notification for events directly from the panel (4 user accounts)
• Auxiliary 24VDC supply output with reset support
• 3 operator level menu structure (20 usernames and passwords)
• History log memory for 9999 events
• Up to 72 hours standby time and 30 minutes alarm
• Compatible with the new loop powered sounders/beacons and base sounders and the 2000 series detectors with replaceable optical chamber

Technical Specification:

Mains supply
Voltage : 230 / 110 VAC (+10% / -15%)
Frequency : 50 / 60 Hz (±5%)
Current : Nom. 0.6 / 1.3 A, Max. 1.5 / 3.15 A
Fuse rating : 2 / 4 A
Cable type : 3 x 1.5 mm² (live, neutral, earth)
Batteries : Max. 2 x 12V/18Ah (use supplied cables)

Outputs
Programmable supervised : 4, 750mA / 19.5-28VDC (24VDC nominal)
General Fire + Fault supervised : 2, 350mA / 19.5-28VDC (24 VDC nominal)
General Fire + Fault relay : 2
Aux : 1 resetable, 500mA / 19.5-28VDC (24VDC nominal)
Cable type : Recommended 2 core 1.5 mm² twisted pair
End of Line resistor : 15kohm

Inputs
Programmable : 2
Cable type : Recommended 2 core 1.5 mm² twisted pair
nd of Line resistor : 15kohm
Maximum Load : 150 mA

Loops
Outputs : 2, 250 mA / 29VDC (29VDC to 36VDC )
Cable length : 56ohm / 1µF max. 2 km
Cable type : Recommended 2 core 1.5 mm² twisted pair

Environmental conditions
Storage temperature : -10°C to +50 °C
Operating temperature : -8°C to +42 °C
Relative humidity : max. 95 % (non-condencing)

Mechanical
Size (W x D x H) : 449.6 x 171.2 x 550 mm
Weight : 7.4 kg (without batteries)
Color : RAL7035
Cable entries (Top / Bottom / Back) : 18 (20mm) / 2 (20mm) / 2 removable plates
IP rating : IP30: for indoor use only

For more details, please refer with our attached datasheet.
