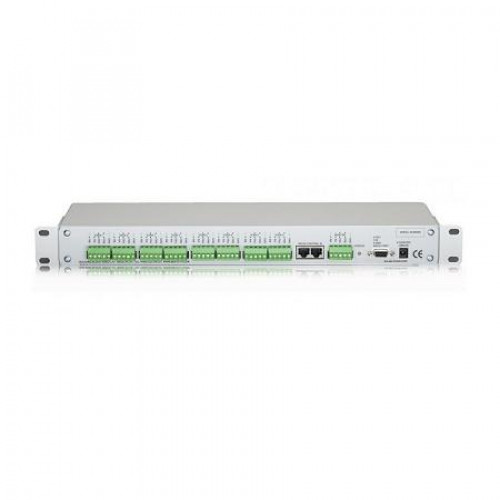

Starcard, 8 x RS422/485 Outputs for Star Configurations
- Brand:ASGARD
- Product Code:Starcard
- Availability:Please Call or Email Us to Check Availability
Starcard, 8 x RS422/485 Outputs for Star Configurations
The Starcard provides a simple and cost-effective solution in the installation of RS485/422 telemetry systems. The Starcard takes RS485/422 data from one source and distributes it across 8 isolated outputs. The outputs can be wired in a star format or a daisy format to allow up to 31 cameras to be controlled from each output.
8 RS422/485 outputs to allow star wiring of telemetry systems, Tx1500 Keypads and alarm cards. Can also be used when star wiring is required for other systems.
Features:
- Two RJ45 sockets and a screw terminal connector for RS485/422 input from a controller and output to additional daisy chained Starcards
- Eight screw terminal connectors used to output RS485/422 data. Each output can be connected to a single dome / receiver or up to 31 domes / receivers or a combination wired as a daisy chain.
- Can be used with either 2-wire, half duplex; 4-wire, full duplex or simplex systems
- Can also be used with simplex RS485/422 links, for example the RS485 output of multiplexers.
- DB9F connector provides a diagnostic output. This can be used with a laptop PC to monitor the data being sent out of the Starcard via RS232
For more details, please refer with our attached datasheet.
