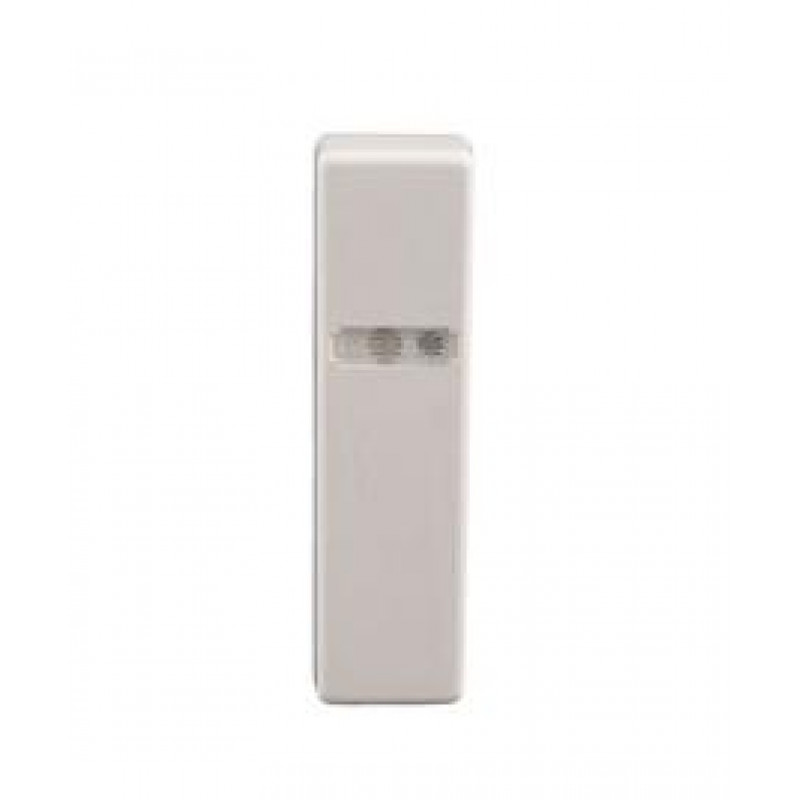

CQR, SDTRAPPER/WH, Trapper Shock Sensor Module for Detection White
- Brand:CQR
- Product Code:SDTRAPPER/WH
- Availability:Please Call or Email Us to Check Availability
CQR, SDTRAPPER/WH, Trapper Shock Sensor Module for Detection White
Trapper uses the well proven mass inertia shock sensor module giving superior stability and performance over all building materials. The unique crow bar leverage action in the design of the CQR sensor means that the moving mass weight is lighter than that of other sensors, thus making it less sensitive to wind and traffic generated vibrations. The wiping action of the hard gold crosspoint bars makes the sensor self cleaning and highly resistant to contact degradation.
Key Features:
- PIC microchip controller
- Auto learn sensitivity control
- Tri-colour LED status indication
- Time window pulse count
- Sequential alarm memory for units 1-10
- Digital sensitivity adjustment using jumpers
- Slave sensor facility
Specifications:
- Supply Voltage: 10.5 - 15vDC
- Qulescent Current: 17mA
- Sensor Loops: 1
- Indicators: Tri-Colour
- Sensitivity: Auto/ manual
- Reset: Auto/ manual
- Alarm Relay: open on alarm, 1 amp, 60v
- Tamper Switch: 250v, 1A
- Size mm: 21 x 25 x 92.
Contact us on sales@hunters-wholesalers.co.uk for more specific product information and pricing installation and training.
