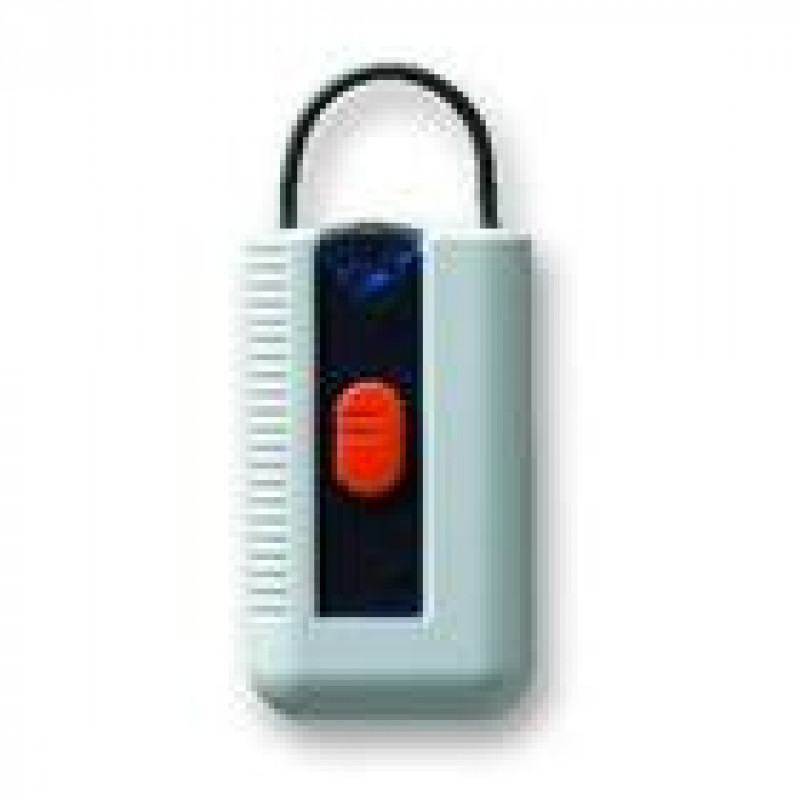

COOPER(Scantronic), 701reur-50, Long Range Pendant PA Transmitter

Long Range Pendant PA Transmitter [701reur-50]

Ergonomic design for simple, reliable operation. Sealed unit, non-replaceable lithium battery

Overview:

The 701r is a narrow band FM radio transmitter compatible with the 762r, 768r/769r and 7510r 868MHz radio receivers.

It can be used to trigger outputs on any of these receivers, or start social care alarms on the 7510r. The transmitter is powered by a lithium  manganese dioxide battery, which is designed to give at least 20,000 operating cycles, or three years of life if used twice per day. The unit can be worn as a neck pendant or carried in the pocket. (See also the 702r for wrist and broach options.)

Please Note: This product is not approved for generating a police response under BS8243:2010.

Specification:

• Part Number: 701rEUR-50
• Free Space Range: >700m
• Transmit Power: 10mW
• Power Supply (battery): 3V Li non-user replaceable
• Battery Life: 3 Years (if used twice a day)
• Temperature Range: -10 to +55°C
• Water Resistance: Shower proof
• Dimensions: 58 x 40 x 16mm
• Weight: 34gm
• Colour: White
• Compliance:
  • EN 50130-4 :1995 +A1:1998 +A2:2003
  • EN 61000 – 6-3 :2007(CISPR 22 Limit B)
  • EN 60950-1 :2006  +A12 :2011
  • EN 300 220-2  V2.1.2
  • EN 301 489-1  V1.8.1
