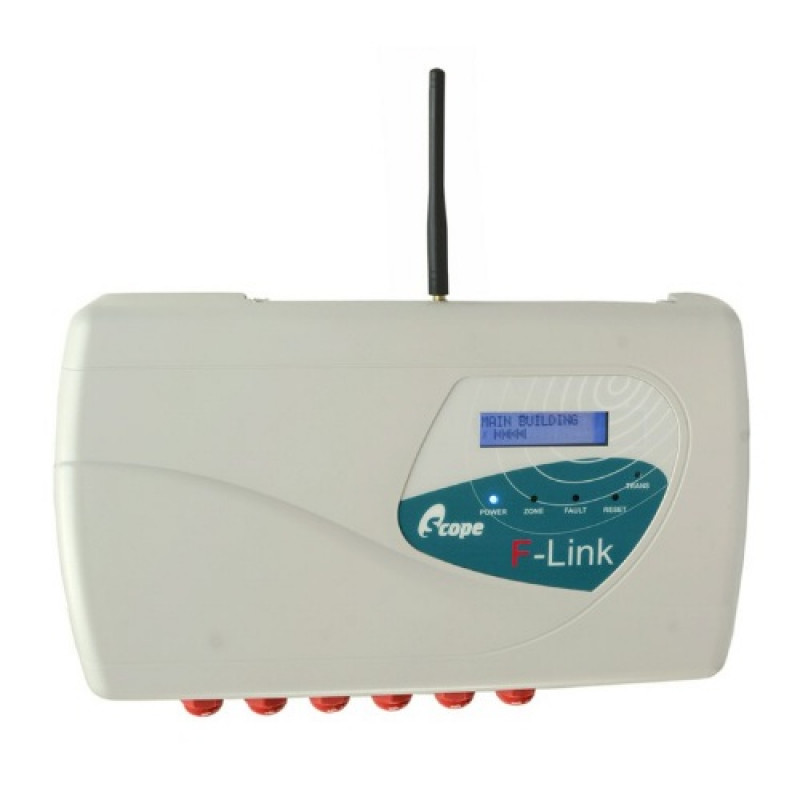

The original Scope F-Link system has become a popular and secure way of remotely alerting and monitoring fire or security panels. The latest version adds even greater performance and improved functionality. F-Link is now housed in a larger case with plenty of cable entry points and an informative text display which provides status information and gives details of alarm messages.

A system consists of two or more F-Link units working together to form a mesh network with each unit operating as both a transmitter and receiver. The radio link between units is monitored for faults in accordance with the relevant sections of BS5839-1:2017 (24.2b) and BSEN54-25:2008 (4.2.6).

There is an additional output on the Master unit for connection to an optional paging transmitter, which sends alarm and fault messages to pocket pagers.

Features:

• Full mesh network signalling technology provides self-healing, fully supervised and high immunity operation for linking up to 16 fire or security panels. Easy to install, quick to expand, simple to re-configure.
• Bright LCD display with clear prompt messages makes installation a breeze, and precise status messages during operation add clarity and transparency to all system alerts.
• All new transceiver module provides increased blocking and immunity, together with fast and stable transmissions for robust system integrity.
• New full format landscape enclosure gives improved access, more cable entry points and includes wall-facing knock-outs for new-build installations.
• Output for optional Scope paging system
• DIP-switch configurable by installer, so no bespoke factory configuration necessary. A programming kit is also available if you want to change the default text messages.
• Link monitoring in accordance with the relevant sections of BS5839-1:2017 (24.2b) and BSEN54-25:2008 (4.2.6).
• Compliant with the Radio Equipment Directive (RED) 2014/53/EU.

Technical Specifications:

• Footprint: (H) 190* x (W) 335 x (D) 70 mm [*355 mm with 1/4 wave antenna]
• Clearance: allow minimum 200 mm clearance on all sides
• Supply Voltage: 10-30V DC
• Power Consumption: ~50mA (standby) / ~300mA (transmitting) / +25mA per active relay
• Transmitter Output: 500mW max
• Frequency Range: 458.5125MHz - 458.9375MHz
• Channel Spacing: 12.5KHz
• Receiver Blocking: > -27 dBm
• Receiver Sensitivity: -117dBm
• Approvals: CE marked / ROHS Directive 2011/65/EU /  Radio Equipment Directive 2014/53/EU
• Standards Applied: EN 300 220-1 V3.1.1 (Radio) / EN 301 489-1 V2.2.1 (EMC) / EN 60950-1: 2006 + A2: 2013 (Safety)

For more details, please refer with our attached datasheet.
