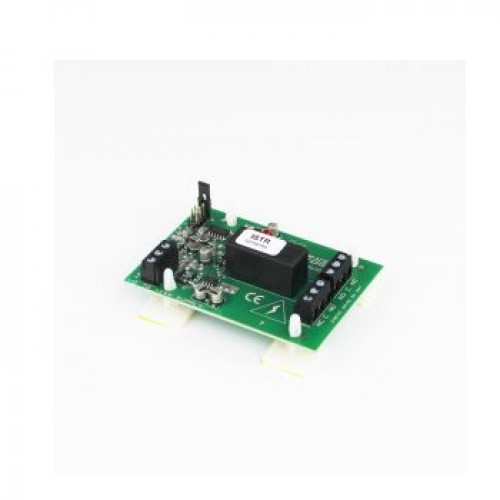

IS (IS TR) 12v/24v Toggled On/Off (8Amp) Double-Pole Relay
- Brand:Interface Solutions
- Product Code:IS TR
- Availability:Please Call or Email Us to Check Availability
IS (IS TR) 12v/24v Toggled On/Off (8Amp) Double-Pole Relay
The toggle relay is a simple low cost module ideal for use with radio controlled transmitter /receivers to operate gates, doors, barriers, CCTV cameras and alarm systems. It has been designed for 12 or 24 Volt DC operation and has a double pole relay rated at 8 amps 240 V AC complete with LED indication.
Operation:
The relay is activated by a trigger which can be a positive or negative voltage applied or removed from the ‘T’ terminal. This gives a toggled on-off action.
Options:
| Link In | Trigger | Relay | |
| A | Applied | Not latched | |
| B | Removed | Not latched | |
| C | Removed | Latched | |
| D | Applied | Latched | |
We recommend IS Sticky feet size B, self-adhesive mounting pillars to ensure a neat fixing
Specifications:
- Supply Voltage: 12 / 24 Volt DC
- Quiescent Current: 8 mA / 23 mA
- Current when activated: 38 mA / 68 mA
- Rated at: 8 Amps at 240 V AC minimum 10 mA
- Dimensions: 57mm (W) x 82mm (L) x 20mm (H)
