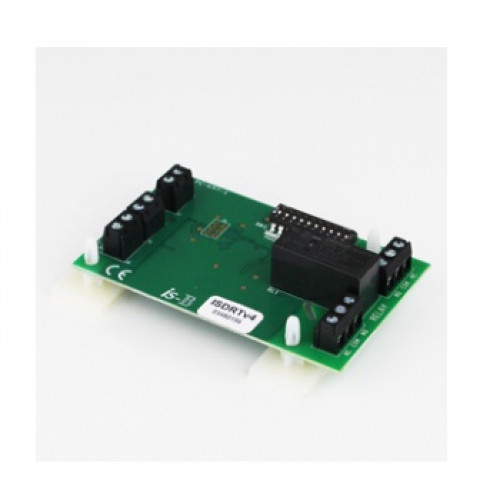

IS (IS DRT) 3 Modes 1-64secs/1-15mins Delayed Timer Double-Pole Relay

IS (IS DRT) 3 Modes 1-64secs OR 1-15mins Delayed Timer (8Amp) Double-Pole Relay - 12v/24v

This versatile 1-64 second / 1-15 minute DRT replaces the time adjustment potentiometer with an easy setting DIL switch for more accurate time setting.

Individual +ve & -ve terminals for both trigger and reset eliminate the need for jumper links to select polarity of both trigger and reset.

Auto voltage selection – just connect either 12 or 24volts DC to the power terminals and the DRT will do the rest.

Operating Modes:

Mode 1      Relay latches on after a trigger  – requires a reset

Mode 2      Relay on for the timed period after a momentary trigger. This time period can be cancelled at any time by applying a reset

Mode 3      Relay on whilst trigger is present, stays on for timed period after trigger removed, timer resets if trigger re-applied during time period, – thus extending the time period

Specifications:

• Operating Voltage: 10 - 24 Volts DC
• Operating Conditions: -10°C to +60°C
• Trigger and Reset: High: >5 V DC Low: <0.8 V DC
• Relay Contacts: Min 10mA, Max 8A at 240V AC & 30V DC
• Supply Input: Reverse polarity protected
• Dimensions: 56mm(W) 90mm(L) 18mm(H)
