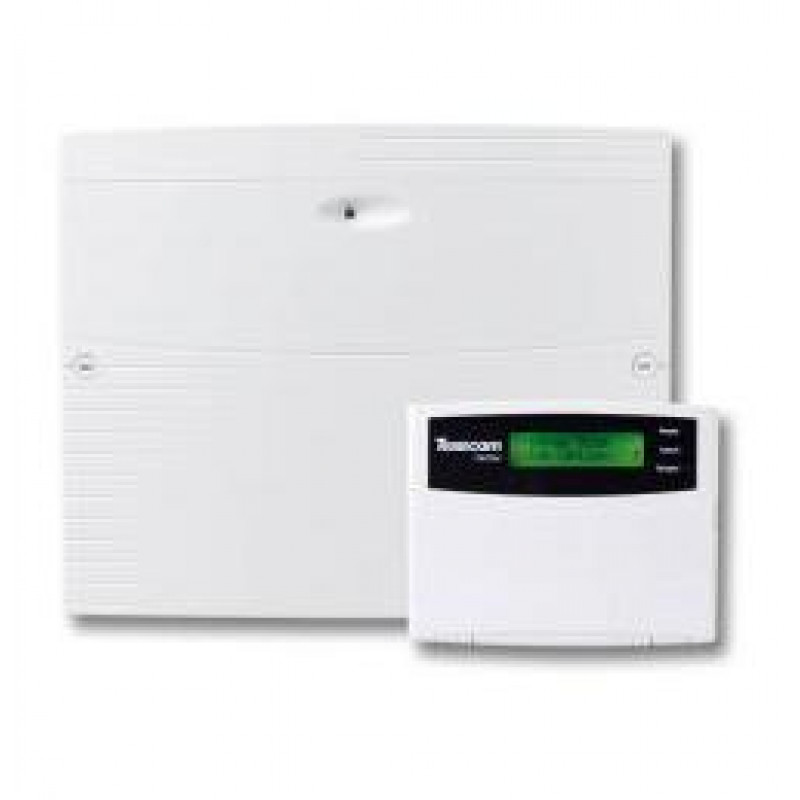

TEXECOM, CFE-0001, Veritas Excel (8 Zone Grade 2 Control Panel)

TEXECOM, Veritas Excel (8 Zone Grade 2 Control Panel) [CFE-0001]

Introducing the Veritas Excel control panel from Texecom. Fully programmable and incorporating all the features that have made the Veritas R8 Plus the uncontested market leader. Banner Text, User and Zone Names are all programmable and the 250 Event Log may be accessed directly. An intuitive menu system makes reference to the instructions unnecessary so programming is as easy as ABC.

Features:

• 8 Fully Programmable Zones Plus Tamper
• Upload/download Compatible
• 8 Channel Communicator Interface With Line Monitor
• EOL or Normally Closed Zone Operation
• 4 Programmable Part Set Suites
• Accepts Up To 6 Remote Keypads (LED or LCD)
• 8 Programmable Access Codes
• Full ACPO Compliance & Anti-code Reset
• Plastic Made.
• 250 Event Log (Time/date Stamped)
• PD6662: 2010  Grade 2 Class II

Specification:

• Current Consumption
  • Quiescent current: <50mA
  • Alarm current: <150mA
• Power Supply
  • Mains Supply Voltage Rating: 230VAC/115VAC (±10%)
  • Max. Total Current Rating: 1ADC at 230VAC/115VAC (±5%)
  • Ripple: <5%
• Part Sets: 4
• Programmable Access Codes: 8
• Engineer Event Log: 250
• Accepts Up To Six Backlit Remote Keypads: LED/LCD
• Dimensions: 282mm x 225mm x 80mm

For more details, Please refer with our attached datasheet.
