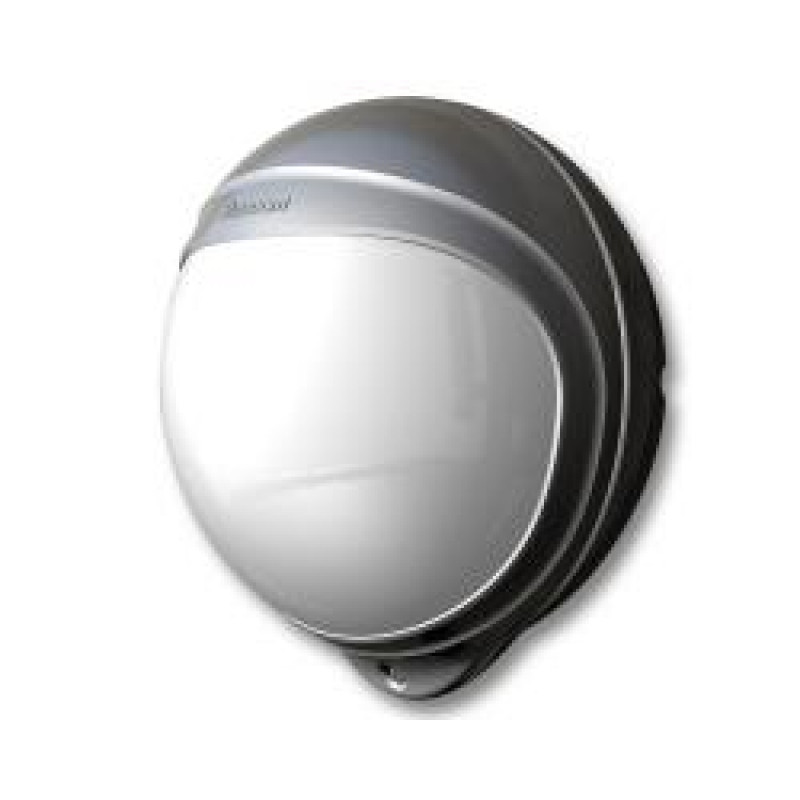

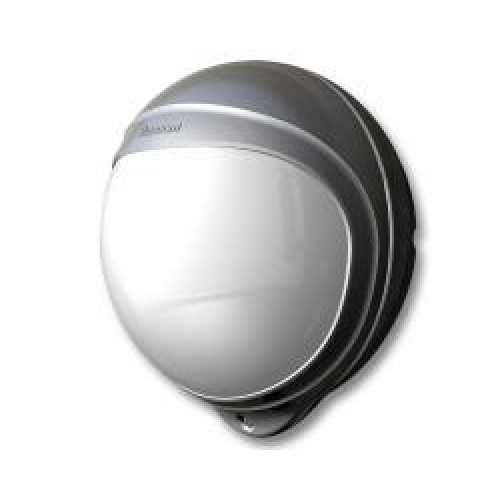

Texecom, AFS-0001, Prestige Orbit Event Driven PIR Detector
- Brand:Texecom
- Product Code:AFS-0001
- Availability:Please Call or Email Us to Check Availability
Texecom, Prestige Orbit Event Driven PIR Detector [AFS-0001]
Quad element detector suitable for most applications.
Technology: The Texecom Prestige Orbit is designed as a versatile unit providing stability in predominantly harsh outdoor environments. Advanced digital detection algorithms give enhanced false alarm immunity, and digital temperature compensation is essential in hot environments. Enhanced white light immunity eliminates 50,000 lux of light offering extra protection from strong light source interference.
Design: Stylishly designed, the high impact UV stabilised ABS housing has conduit and rear entry for secure wiring.
Detection: The detection element is fully adjustable through 180˚ with a 90˚ tilt. This provides a 10˚ to 70˚ detection angle with a maximum of 30m coverage.
Features:
- Detection Method: Shielded quad element
- Fully adjustable through 180˚ with a 90˚ tilt
- 10˚ to 70˚ detection angle with a maximum of 30m coverage
- Current Consumption: 8mA (12V nominal)
- Packed Weight: 275 grams approx
- Mounting Height:Up to 6m, optimum height 3m
- Supply Voltage: 9-15 VDC
- Alarm Output: NC/NO selectable relay. Rated 50VDC, 100mA, 18Ω
- Tamper Detection: Wall and case
- Tamper Output: 2 solid state relays, 1 N/O and 1 N/C
- Operating Temperature: -20˚C to +55˚C
- Dimensions: 141mm x 165.5mm x 109mm
