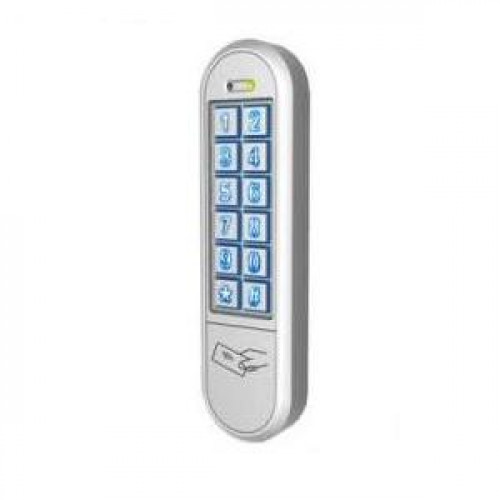

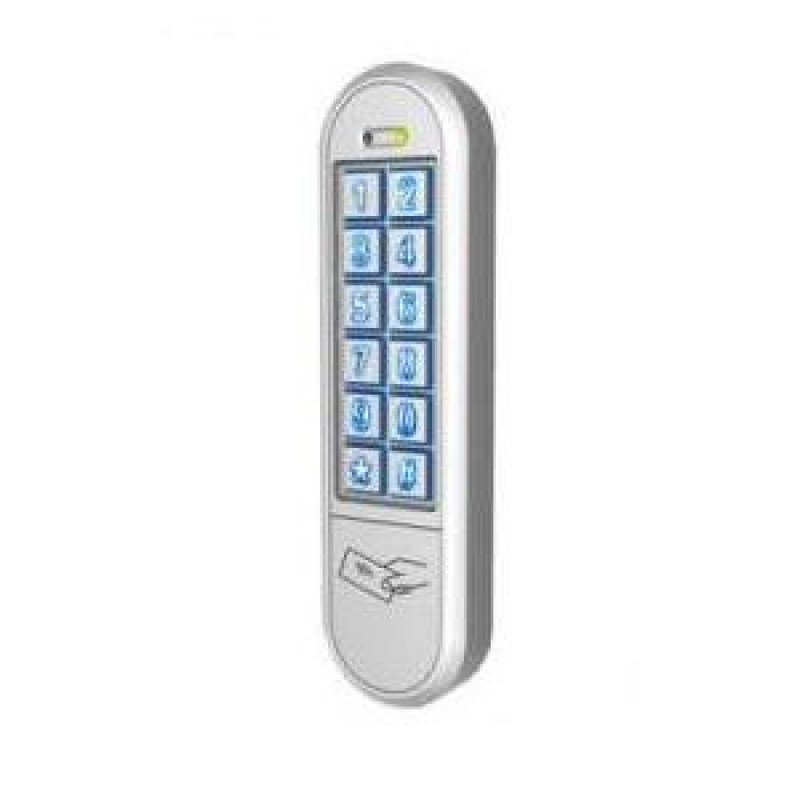

TDSI, 2920-5000, Stand-Alone Keypad (Mullion)

TDSI, 2920-5000, Stand-Alone Keypad (Mullion)

TDSI’s stand alone reader feature single mounting of both reader and ACU in one single unit, reducing installation time and cabling costs. Vandal resistant, both products are also vandal resistant and tamper proof, with an IP65 rated housing to allow for internal and external installation. Furthermore, the backlit keypad enables the reader to be used day or night, further increasing the range of potential applications for this versatile reader/controller.

For single door installations in almost any location, TDSi’s stand alone readers provide the ideal solution in one tidy unit, available in either mullion or square variations.

Key Benefits:

Flexible Entry Method

• Card access only
• Code access only
• Combined card + code access

Large Capacity

• Capacity for 1000 passwords and card holders (ZONE 1) and up to 10 passwords or card holders (ZONE 2)
• Compatible with TDSi’s proximity cards and fobs
• Can connect to external unlock button

Key Features:

• 5cm read range
• Operates at 125kHz
• Compatible with TDSi’s proximity cards and fobs
• Built-in anti-tamper function
• Watchdog Timer
• Power reset
• Self-recovery watchdog
• Dual relay outputs
• Door opening
• Door status detection (ZONE 1 only)
• Open door by button

Technical Specifications:

• Temperature range : -20ºC to +50ºC
• Humidity range : 5 - 95% non-condensing
• Power : 12 - 24V DC; 12 - 24 V AC
• Current : 80mA (standby); 110mA (working)
• Read Range (cards) : Up to 50 mm
• Operating Frequency : 125kHz
• Capacity : ZONE 1: 1000 passwords AND cards; ZONE 2: 10 passwords OR cards
• Dimensions : 123(H) x 79(W) x 21(D) mm
