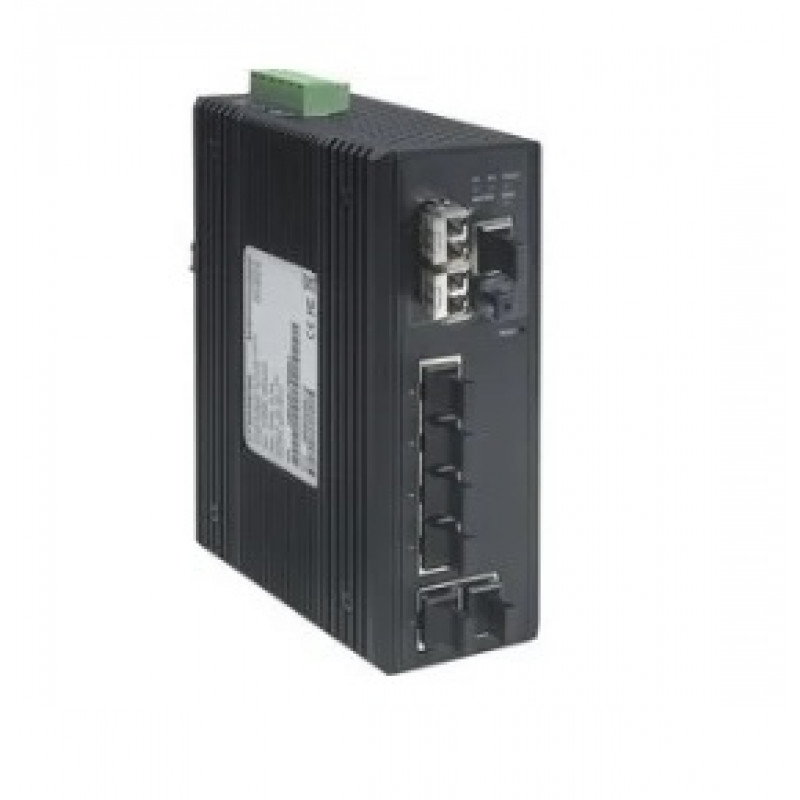

Honeywell (583394.11) Fibre Optic Switch

Honeywell (583394.11) Fibre Optic Switch

The Fiber Optic switch is used for designing an Ethernet network in loop topology. On account of the loop structure, the network is fully redundant since, in the case of an fiber rupture, it is possible to still communicate through the other side of the loop. In addition, every Fiber Optic switch has two operating voltage inputs (24 V DC) and one relay for the forwarding of fault signals.

Key Features:

• 6-port 10/100/1000Tx Gigabit Ethernet
• 2-port 100/1000 SFP Slot
• Configuration: Web GUI, Serial Console, CLI Command
• Network Redundancy support: G.8032 ERPS,RSTP,MSTP
• Supports IGMP v1/v2, up to 256 groups
• Supports IEEE802.1p QoS and CoS/ToS
• Supports IEEE802.1Q VLAN, SNMP v1/v2c/v3
• System Warning setting for automatic warning through e-mail
• Redundant Power Input Design, 12 - 48 V
• Rugged Metal Case Design
• DIN-Rail Mounting, Wall Mounting (optional)

Specifications:

• Operating voltage : 12 - 48 V DC.
• Power consumption : 15 W.
• Ambient temperature : -5 °C - 45 °C.
• Storage temperature : -40 °C - 85 °C.
• Air humidity : < 15 %.
• Housing : Metal.
• Dimensions : W: 46 mm H: 142 mm D: 99 mm.
