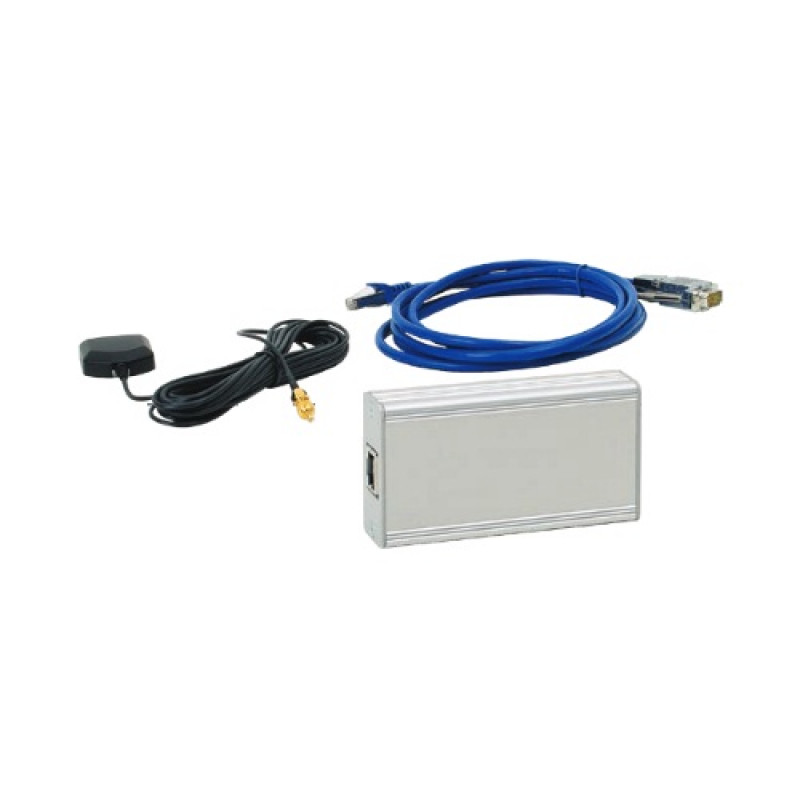

Honeywell (583387.21) Time Control Module GPS

Honeywell (583387.21) Time Control Module GPS

The time control module is connected directly to the Honeywell Voice Alarm system and ensures time synchronization via GPS signal.

The Time Control Module facilitates the exact timing of automated announcements (e.g. school bells), timed volume adjustments (e.g. reduction of volume level at night for train stations) or simply the exact documentation of announcements or system events.

The module is connected either via the TWI bus of the DOM via a standard CAT5 cable (max. 10 m) or directly to the DOM using the included adapter cable. Both failure of the module as well as loss of satellite transmission are signaled.

The GPS signal is transmitted to the receiver via antenna and coaxial cable. The antenna should be sited in line of sight to open sky in order to receive signals from several satellites.

The most suitable options for positioning the antenna are thus close to a window or even on top of a roof.

Key Features:

• Module for time synchronization of all voice alarm systems
• Can be connected to any DOM in the system
• Time synchronization via GPS signal
• EN 54-16 approved

Technical Specifications:

• Dimensions, (3 HU): Width 115mm / Height 55mm / Depth 25mm
• Antenna cable length: max. 33 m (type RG174) / max. 66 m (type RG58)

For more details, please refer with our attached datasheet.
