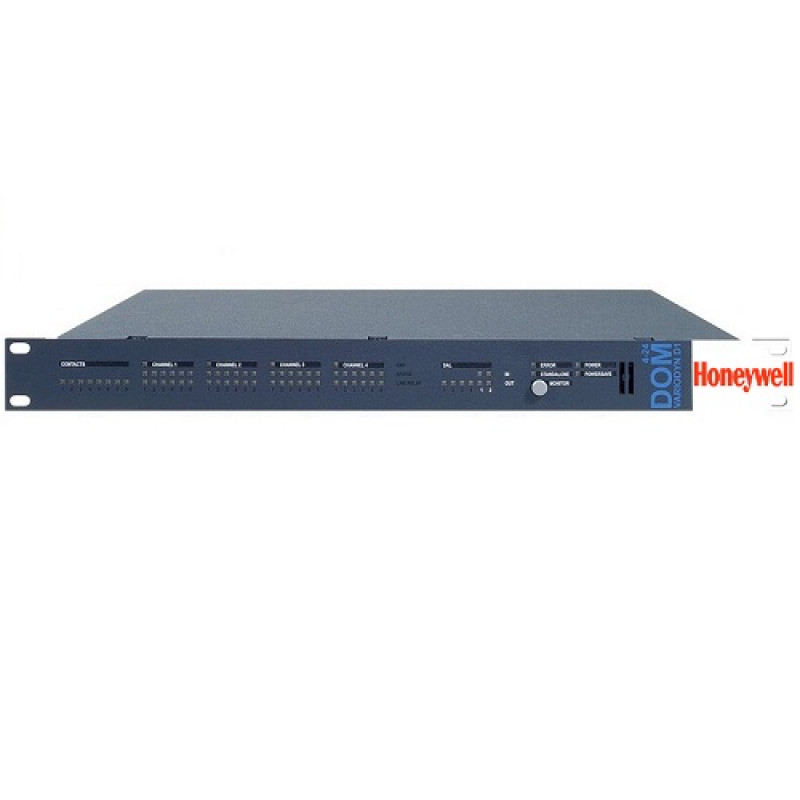

Honeywell (583362.22.IPMSG) Digital Output Module, 4 Channel 24 Output (DOM)

Honeywell (583362.22.IPMSG) Digital Output Module, 4 Channel 24 Output (DOM)

The Digital Output Module (DOM) is the central control element of the Honeywell Voice Alarm System. It has interfaces to all input/output modules, manages and monitors the loudspeaker circuits.

The Digital Output Module (DOM) is the heart of the Honeywell Voice Alarm and Public Address system. Managing either 8 or 24 zones the DOM routes up to 4 channels of audio via amplifiers to any individual zone or groups of zones.

The 2 variants, DOM4-8 and DOM4-24 are both equipped with four independent audio outputs in order to access four channels. Each audio channel controls up to 8 loudspeaker zones with each DOM managing 8 zones (DOM 4-8) or 24 zones (DOM 4-24).

The loudspeaker circuits are constantly monitored for short-circuit, earth fault and failure as well as for impedance deviation. Defective loudspeaker zones are isolated with the operation of all other zones unaffected.

The system can accommodate either impedance or end of line monitoring providing a flexible solution to both new build and existing retrofit projects regardlessl of the type of loudspeakers currently installed.

Key Features:

• Certified to EN54-16
• Message store for pre-recorded emergency messages
• Network ready for larger systems and / or distributed rack system
• Continuous monitoring of all vital system components
• Automatic and dynamic switching to backup amplifier
• Automatic volume control (AVC) on all channels
• Remote monitoring and configuration via ethernet across internet or VPN
• Emergency standby power supply via 24 V DC
• Monitoring of complete audio path including loudspeaker circuits
• 4 connections for paging and emergency microphones via proprietary Digital Audio Line (DAL)

For more details, please refer with our attached datasheet.
