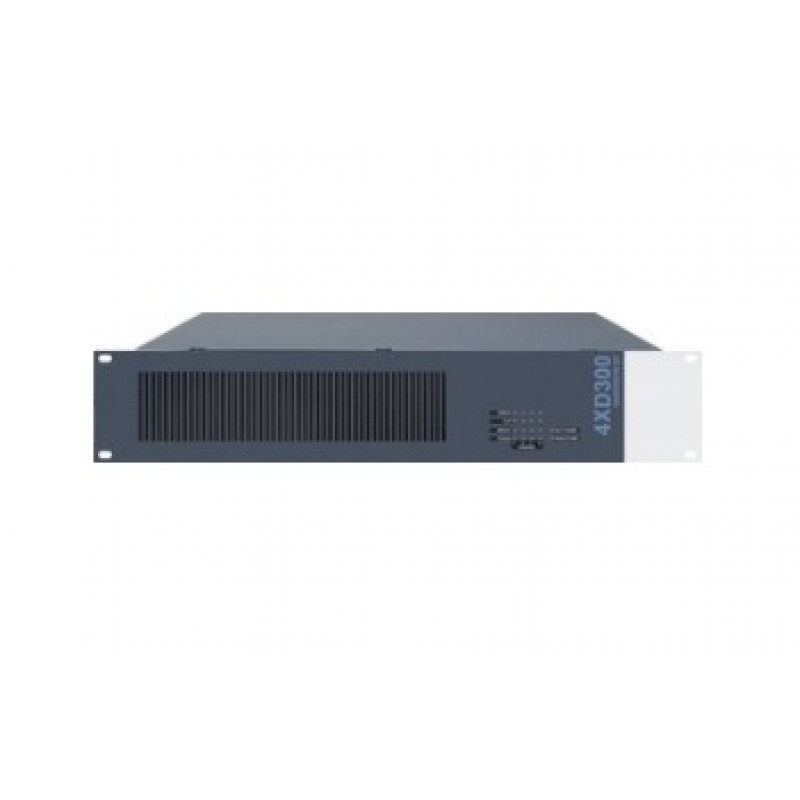

Honeywell (580248.11) Digital Power Amplifier with Four 300W Channels
- Brand:Honeywell
- Product Code:580248.11
- Availability:Please Call or Email Us to Check Availability
Honeywell (580248.11) Digital Power Amplifier with Four 300W Channels
Power amplifier for the voice alarm system VARIODYN D1 in class D technologies with four independent power channels and galvanic isolated 100 V direct outputs, symmetric inputs, inrush current limitation and soft start. In comparison to our 4XDxxxB series amplifiers, one amplifier can back up another amplifier. Four built-in fans with smooth temperature controlled speed control.
Key Features:
- Built- in electronic protective circuit against thermal overload, DC signals, sub frequent signals, short circuit, open outputs and HF interference.
- Individual status LEDs indicate channel CLIP, PROTECT, SIGNAL, POWER, LINE and 24 V DC power Back switch contact for sequential remote power.
- 2 back fault message contacts.
- Back fault message contact for missing 24 V emergency power supply.
- 24 V emergency power supply input.
- Suitable for use with loop technology.
Specifications:
- Rated voltage : 230 V AC.
- Rated frequency : 50 Hz - 60 Hz.
- Emergency power supply : 24 V DC.
- Technology Class D.
- Channel separation 92 dB.
- Harmonic distortion at nominal level : 0.02 %.
- Ambient temperature : -5 °C-55 °C.
- Air humidity : < 40 %.
- Color : gray, similar to RAL 7016.
- Dimensions : W: 484 mm H: 88 mm D: 400 mm (2HU 19").
Contact us on sales@hunters-wholesalers.co.uk for more specific product information and pricing installation and training.
