Honeywell (580242) Direct Drive VA Amplifier with Battery Charger 4XD125B
- Brand:Honeywell
- Product Code:580242
- Availability:Please Call or Email Us to Check Availability
Honeywell (580242) Direct Drive VA Amplifier with Battery Charger 4XD125B

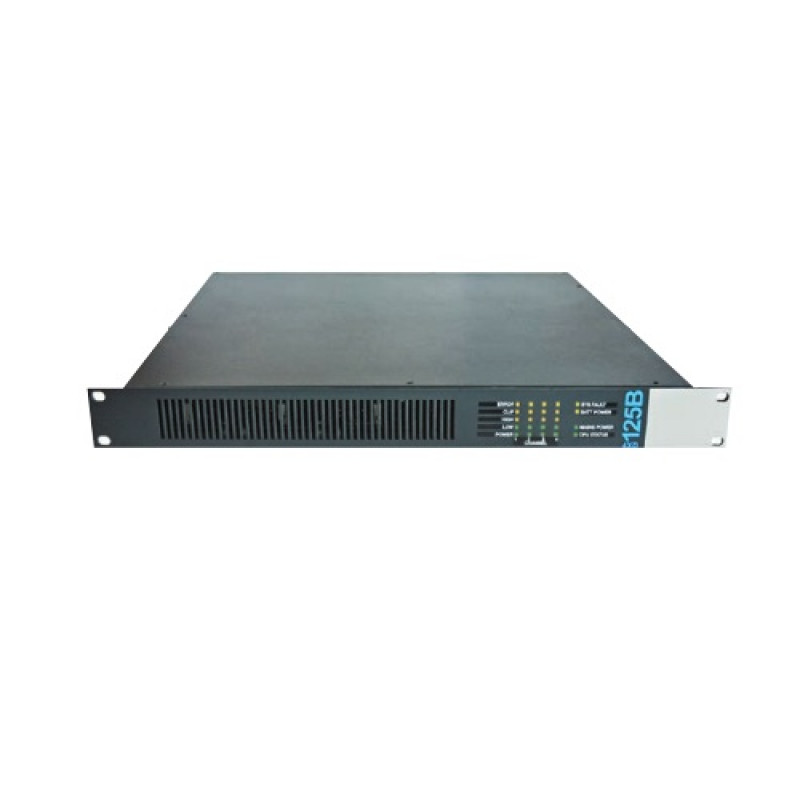

The 4-channel Direct Drive Amplifier is a rack mountable amplifier unit providing a 4 x 125W power outputs.
The 1U 19inch rack mountable direct drive 4 channel voice alarm amplifier unit provides 4 x 125W power output. The unit can also be configured to provide 2 x 250W power output. Each channel provides an independent 100V audio output.
The unit has an integral battery charger for charging 24V lead acid batteries of up to 65Ah used to provide standby supply in the event of mains failure. It is designed for direct integration and is fully compatible with the Honeywell Voice Alarm System DOM module and can also be used with other VA/PA systems.
Key Features:
- 4-channel Direct-Drive amplifier for voice alarm application that utilise industry standard 100V speakers
- High efficiency (80% typical) Class D Amplifiers
- Delivers maximum possible power under any overload or overdrive condition to maintain intelligibility of voice messages
- Integrated temperature compensated battery charger Certified to EN54 Part 4, capable of charging up to 65Ah battery pack
- Compliant with IEC BS EN 60268-3, 55013 55020 norms
- Microcontroller based extensive self monitoring and control
- Protection against overload and wiring short
- Protection against overheating
- Temperature management with variable speed fan assisted cooling
- System control and monitoring via DOM module or other VA/PA system control module
- Full status reporting, diagnostics and control over CAN bus
Benefits
- EN54-16 certified
- Configurable outputs 4 x 125W or 2 x 250W
- 100V direct output from amplifier removes the need for traditional step up transformer
- Only 1U rack space used
- On board EN54-4 compliant battery charger
- Reduced weight compared to traditional amplifiers
- Reduced heat output
- Reduced power consumption
- Increases rack capacity due to 1U rack space taken
- Two independent 24V DC power outputs to power VA/PA controller or accessories
General indicators
- Mains Power (green LED)
- CPU Status (green LED)
- System Fault (yellow LED)
- Battery Power (yellow LED)
Channel indicators
- Power (green LED)
- High (green LED)
- Low (green LED)
- Clip (yellow LED)
- Error (yellow LED)
For more details, please refer with our attached datasheet.
