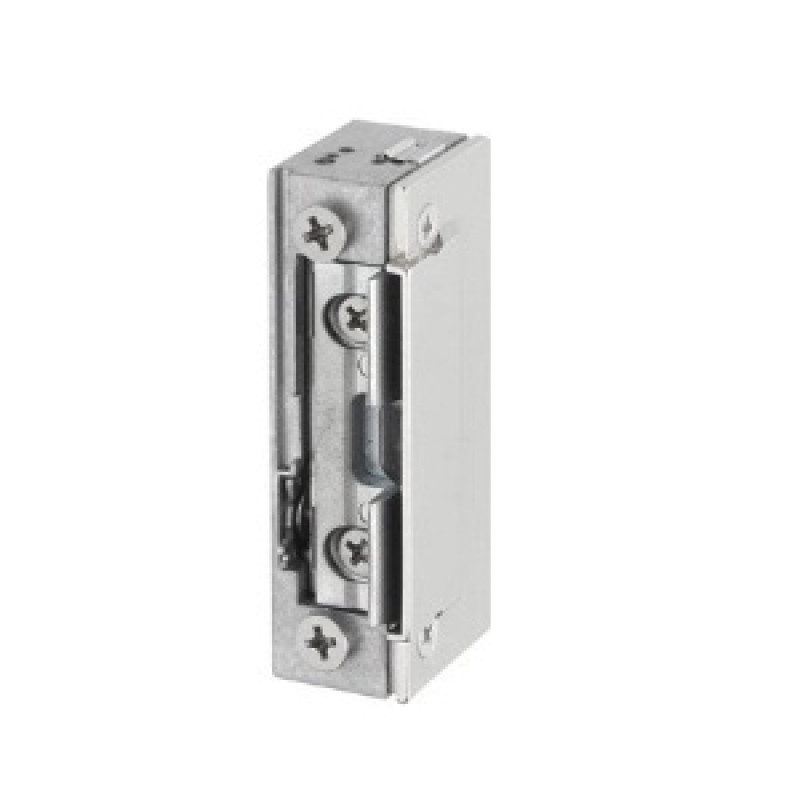

Fermax, 1814, Electric Strike 990ND Top Max (10-24VAC-DC)
- Brand:Fermax
- Product Code:1814
- Availability:Please Call or Email Us to Check Availability
Fermax, 1814, Electric Strike 990ND Top Max (10-24VAC-DC)
Latest generation series, with a coil that works both in DC and AC power supply from 10-24 volts.It is as well characterized for the reduced dimensions of the mechanism box making the installation in any type of door easier. With a front panel of 16 mm, a height of 66 mm and a depth of only 25,5 mm.
The TOP version includes an especial cover which makes its flush mounted installation easier as it does not require an especial framework for the latch movement.
It allows a short P22 type shield (ref. 2894) or a large L22 type shield (ref.2892) whose main characteristics are that they have a 22 mm width for narrow profiles.
Key Features:
- Body of 66 mm
- Front panel of 16 mm. TOP version of 18,5mm
- Depth of 25,5mm
- Reversible (Right DIN or left DIN)
- Symmetrical
- Radial and adjustable MAX latch as standard
Consumption:
- N 12Vac: 250mA
- 24Vac: 500mA
- 12Vdc: 280mA
- 24Vdc: 560mA
Specification:
- Dimensions: 66(V) x 18.5(H) mm
- Temperature: -15ºC to +40ºC
