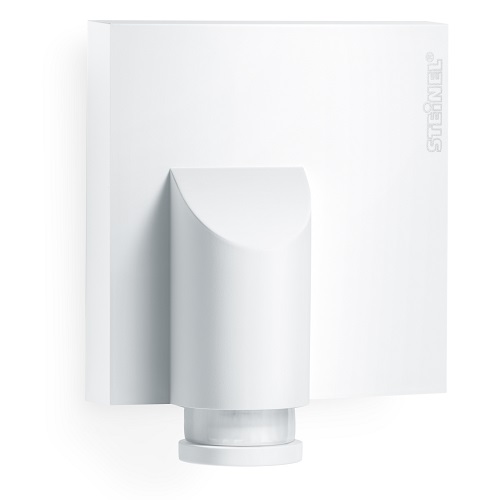

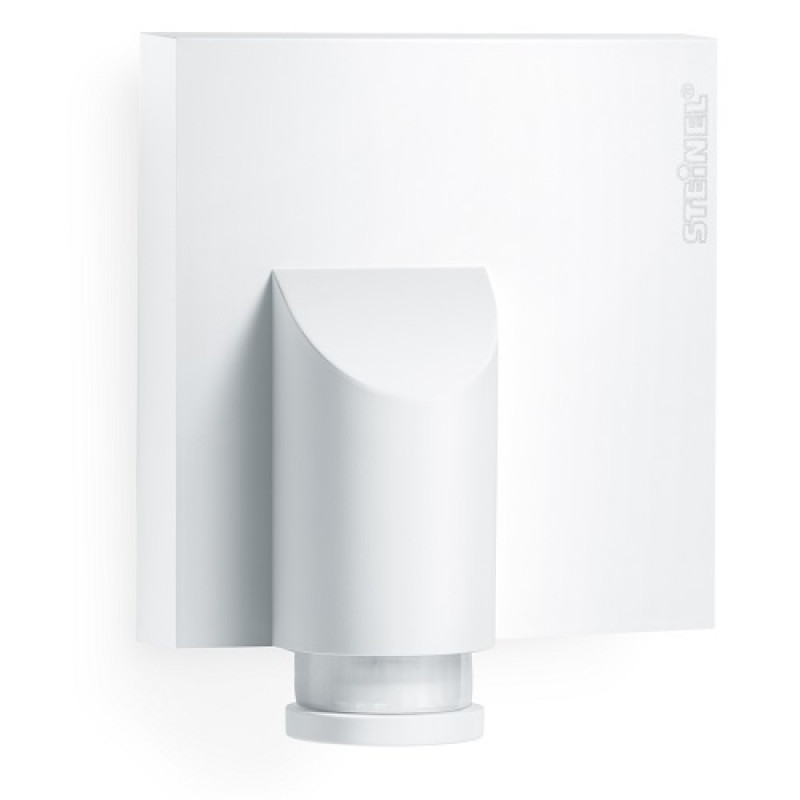

Steinel, IS NM 360/W, IR Designer Motion Detector with Mini-Sensor - White
- Brand:Steinel
- Product Code:IS NM 360/W
- Availability:Please Call or Email Us to Check Availability
Steinel, IS NM 360/W, IR Designer Motion Detector with Mini-Sensor - White
Motion detector and photo-electric lighting controller in one. Infrared motion detector IS NM 360, for indoors and out, ideal for building fronts and driveways, 360° angle of coverage, reach up to 8 m all round, selectable time and twilight threshold, 4 function programmes geared to practical needs, with optional manual override.
Technical Specifications
- European Article Number (EAN): 4007841609313
- Type: Motion detectors
- Dimensions: (L x W x H) 114 x 100 x 58 mmm
- Mains power supply: 220 – 240 V , 50 / 50 Hz
- Sensor Technology: passive infrared
- Application, place: Indoors, outdoors
- Type of installation: Surface wiring
- Switching zones: 512 Schaltzonen
- Electronic scalability: No
- Mechanical scalability: No
- Optimum mounting height: 2 m
- Detection angle: 360 °
- Angle of aperture: 90 °
- Sneak-by guard: Yes
- Capability of masking out individual segments: Yes
- Reach, tangential: Ø 16 m (201 m²)
- Twilight setting TEACH: No
- Twilight setting: 2 – 2000 lx
- Time setting: 5 s – 15 min
- Switching output 1, resistive: 1000 W
- Switching output 1, number of LEDs / fluorescent lamps: 6 stk.
- Constant-lighting control: No
- Basic light level function: No
- With remote control: No
- Interconnection: Yes
- IP rating: IP54
- Material: Plastic
- Ambient temperature: -20 – 50 °C
- Colour: white
- Colour, RAL: 9010
- Version: white
Contact us on sales@hunters-wholesalers.co.uk for more specific product information and pricing installation and training.
